Crankshaft Rear Seal with Retainer Plate — 2016 workshop reference 173

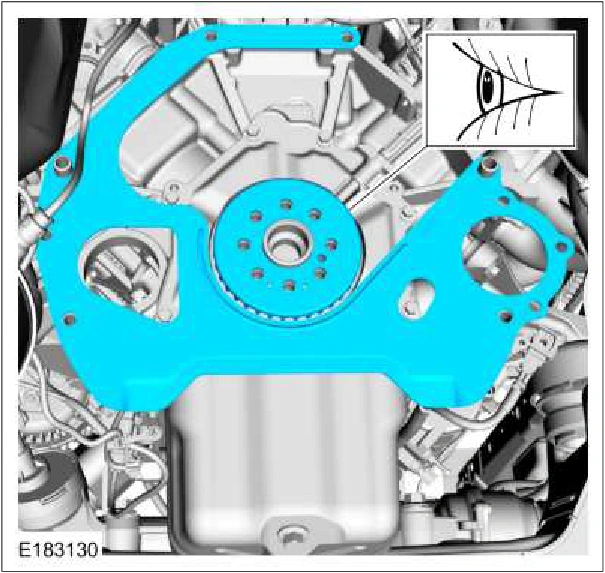

2. NOTE: Automatic transmission spacer plate shown, manual transmission similar.

Remove the crankshaft sensor ring and the engine-to-transmission spacer plate. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

Crankshaft Rear Seal with Retainer Plate — original illustration 1, reference 173Original colors & callouts · Select to enlarge

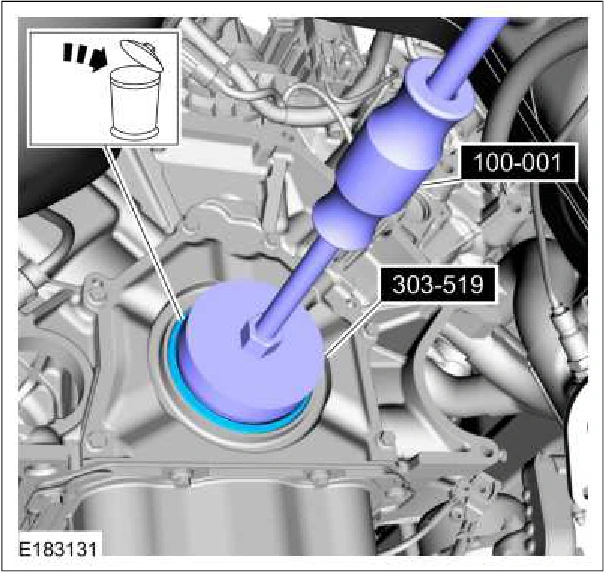

3. Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal. , 100-001 (T50T- 100-A) Slide Hammer.

Crankshaft Rear Seal with Retainer Plate — original illustration 2, reference 173Original colors & callouts · Select to enlarge

4. Disconnect the CKP sensor electrical connector. Remove the bolt and the CKP sensor.
