Crankshaft Rear Seal with Retainer Plate — 2016 workshop reference 175

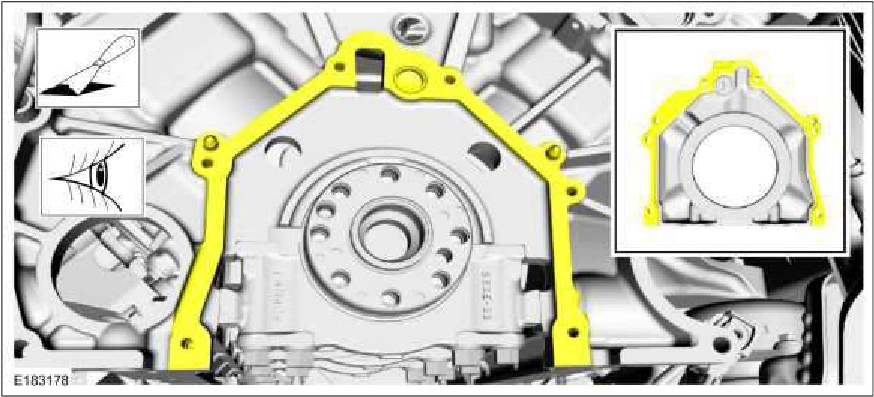

Material : Motorcraft® Silicone Gasket Remover / ZC-30-A Material : Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.) Material : Motorcraft® Metal Surface Prep / ZC-31-B

Crankshaft Rear Seal with Retainer Plate — original illustration 1, reference 175Original colors & callouts · Select to enlarge

Installation

1. NOTE: If the rear crankshaft seal retaining plate is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure may cause future oil leaks.

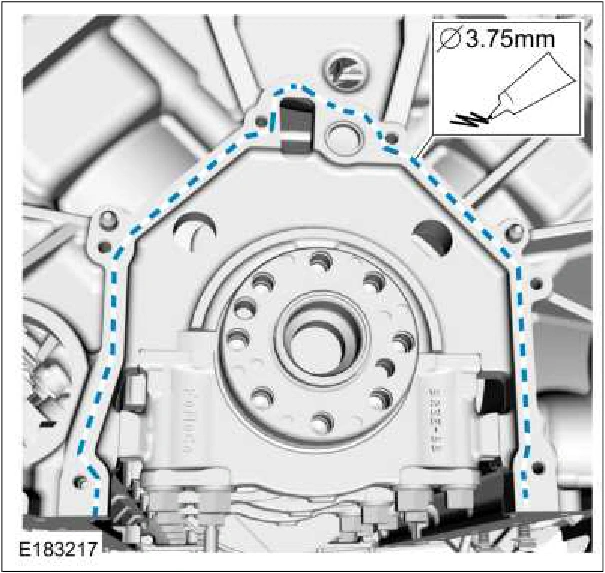

Apply a 3.75 mm (0.147 in) bead of silicone gasket and sealant to the rear crankshaft seal retainer mating surface on the engine block. Material : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Crankshaft Rear Seal with Retainer Plate — original illustration 2, reference 175Original colors & callouts · Select to enlarge

2. Install the crankshaft rear seal retainer plate and the bolts. Torque : Stage 1: 89 lb.in (10 Nm) Stage 2: 45°

Source reference 175
