Crankshaft Rear Seal with Retainer Plate — 2016 workshop reference 176

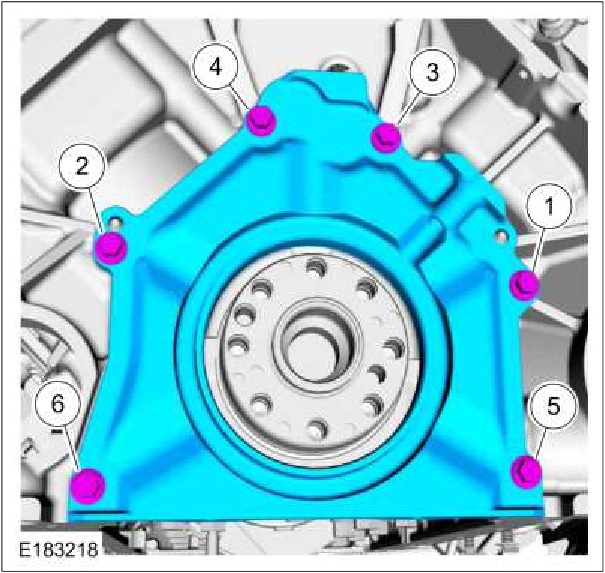

Crankshaft Rear Seal with Retainer Plate — original illustration 1, reference 176Original colors & callouts · Select to enlarge

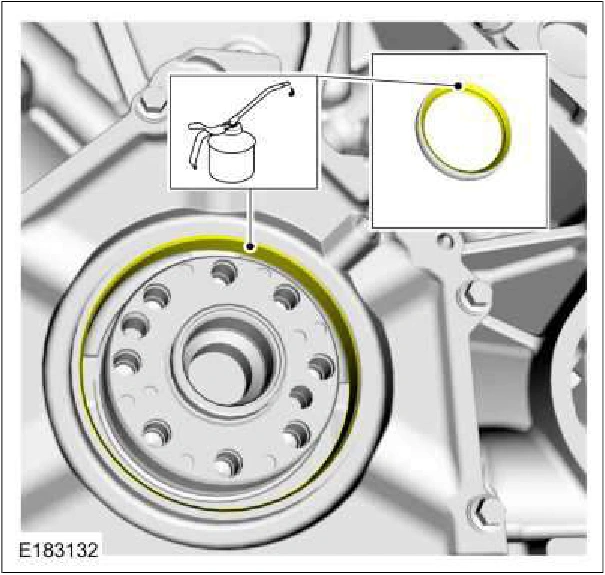

3. Lubricate the crankshaft rear seal bore and the seal lips with clean engine oil. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Crankshaft Rear Seal with Retainer Plate — original illustration 2, reference 176Original colors & callouts · Select to enlarge

4. Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main. Slide the new crankshaft rear seal onto the tool.

Source reference 176

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
