Crankshaft Rear Seal with Retainer Plate

303-01C Engine - 5.0L

2016 Mustang5.0LReference 178 / 6,619HTML edition
← Chapter contentsProcedure contents

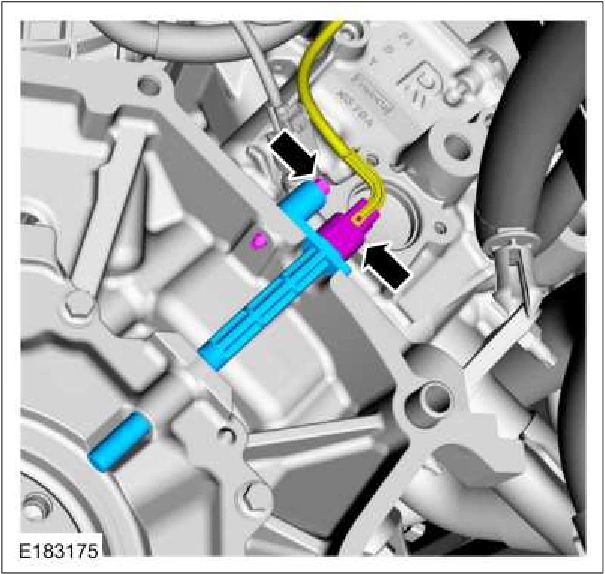

Crankshaft Rear Seal with Retainer Plate — original illustration 1, reference 178Original colors & callouts · Select to enlarge

7. Install the oil pan. Refer to: Oil Pan (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

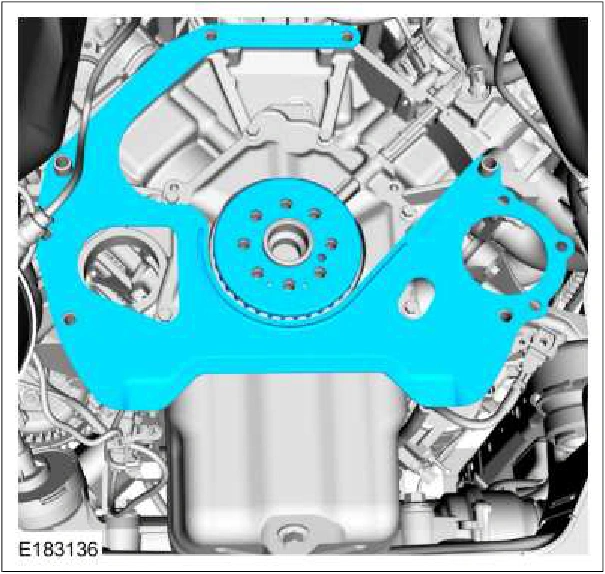

8. NOTE: Automatic transmission spacer plate shown, manual transmission similar.

Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

Crankshaft Rear Seal with Retainer Plate — original illustration 2, reference 178Original colors & callouts · Select to enlarge

9. Install the flexplate or flywheel. Refer to: Flexplate (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Flywheel (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
