2016 workshop · Engine

Cylinder Head LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 181 / 6,619HTML edition
← Chapter contentsProcedure contents

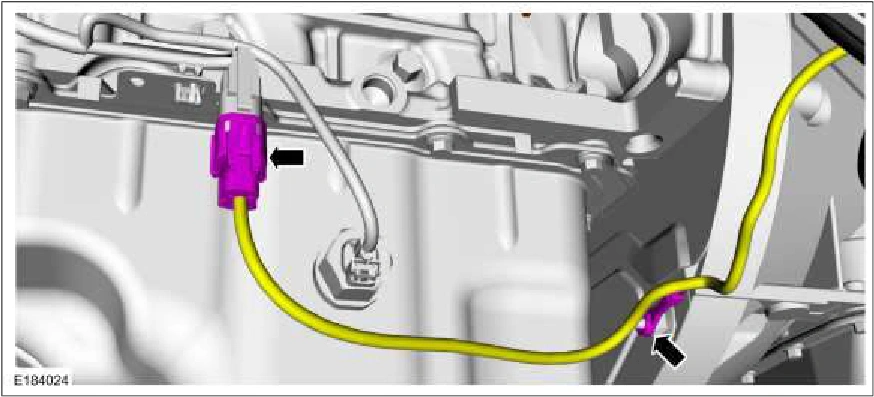

Cylinder Head LH — original illustration 1, reference 181Original colors & callouts · Select to enlarge

5. NOTE: Automatic transmission shown, manual transmission similar.

Disconnect the LH catalyst monitor sensor electrical connector and detach the harness retainers.

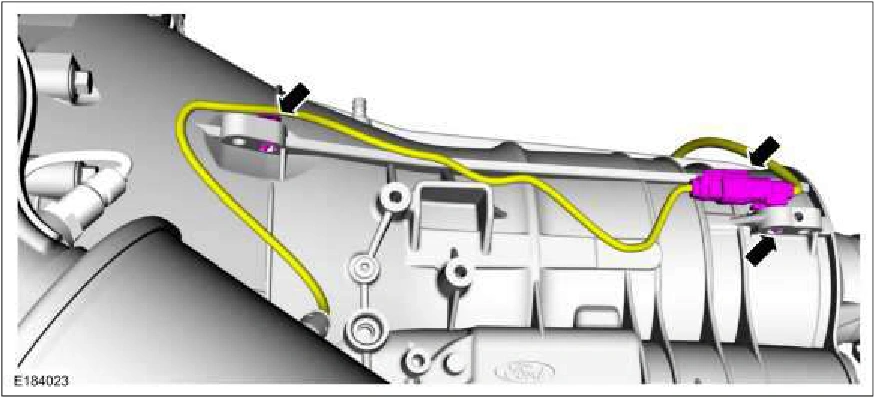

Cylinder Head LH — original illustration 2, reference 181Original colors & callouts · Select to enlarge

6. Remove the following items:

1. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Camshaft LH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Refer to: Catalytic Converter LH (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

7. Install the LH engine mount bracket, bolts and stud bolt. Torque : 41 lb.ft (55 Nm)
