Cylinder Head LH — 2016 workshop reference 182

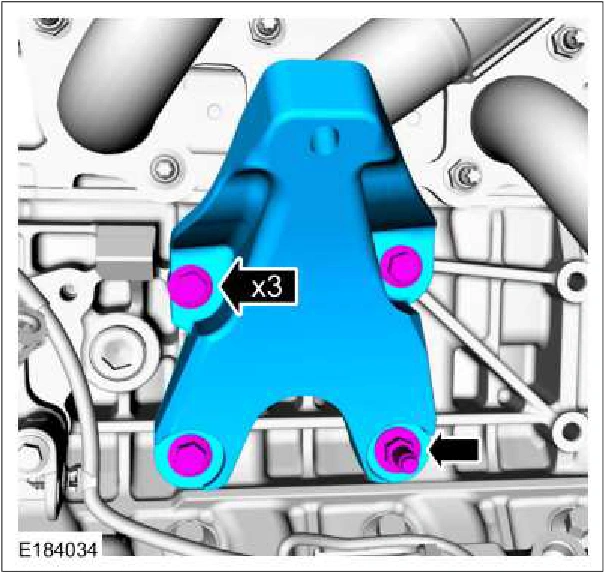

Cylinder Head LH — original illustration 1, reference 182Original colors & callouts · Select to enlarge

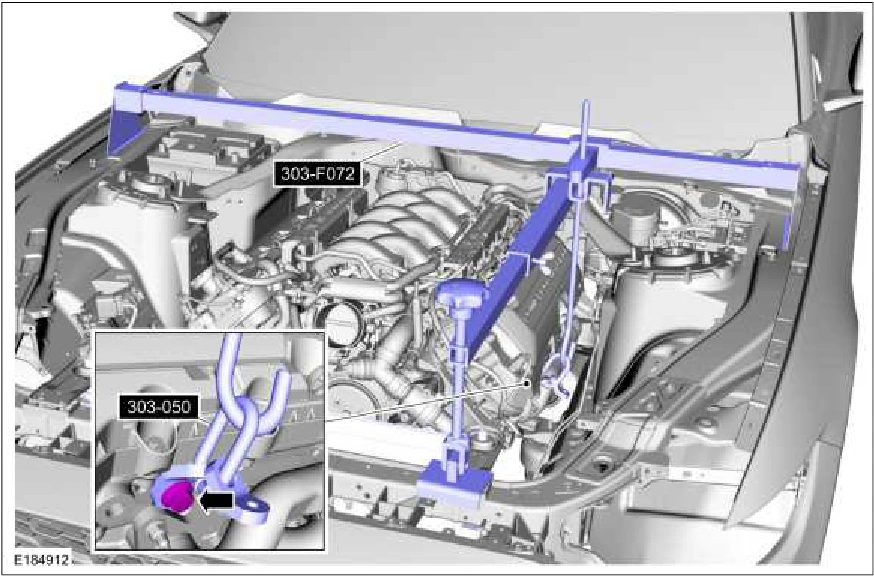

8. Using the special tools, lower the engine onto the LH engine mount. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine. , 303-F072 Support Bar, Engine.

Cylinder Head LH — original illustration 2, reference 182Original colors & callouts · Select to enlarge

9. Disconnect the Camshaft Position (CMP) sensors and the ignition interference capacitor electrical connectors. Remove the bolt and position the ground wire aside.
