Cylinder Head LH — 2016 workshop reference 183

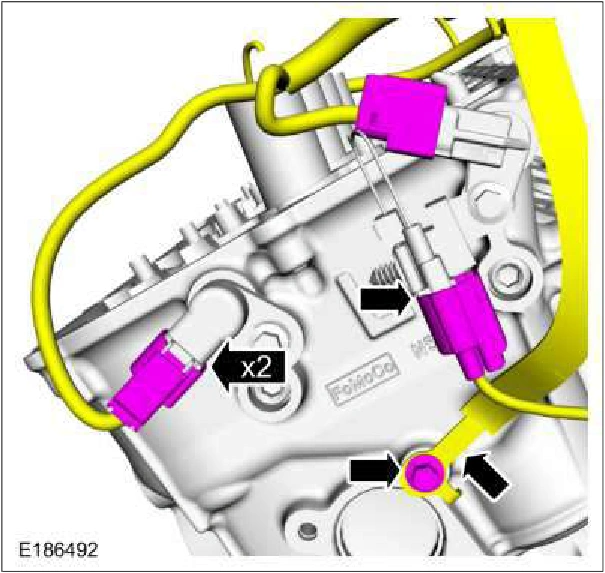

Cylinder Head LH — original illustration 1, reference 183Original colors & callouts · Select to enlarge

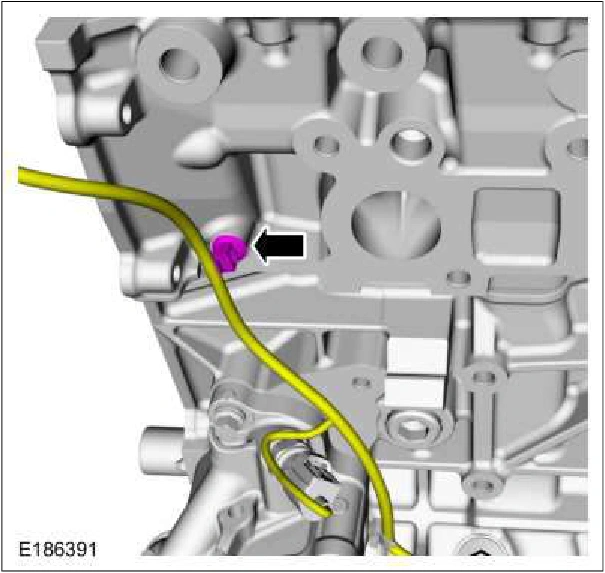

10. Detach the wiring harness retainer from the cylinder head.

Cylinder Head LH — original illustration 2, reference 183Original colors & callouts · Select to enlarge

11. Remove and discard the bolts.

Remove the cylinder head.
