Cylinder Head LH — 2016 workshop reference 186

Cylinder Head LH — original illustration 1, reference 186Original colors & callouts · Select to enlarge

3. Attach the wiring harness retainer to the cylinder head.

Cylinder Head LH — original illustration 2, reference 186Original colors & callouts · Select to enlarge

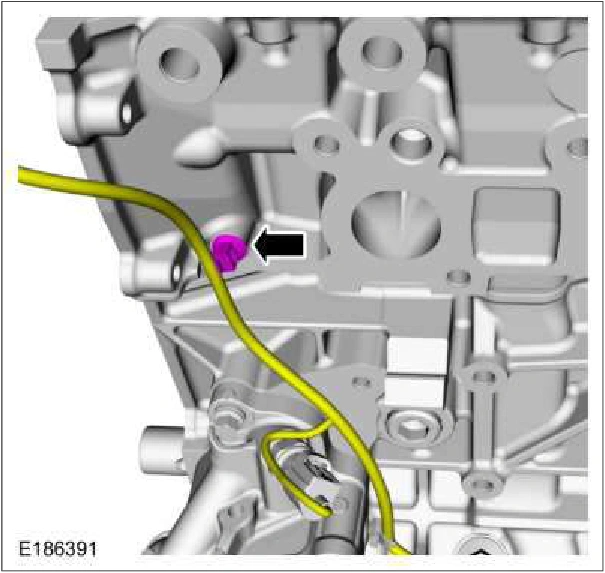

4. Install the ground wire and bolt. Torque : 106 lb.in (12 Nm) Connect the Camshaft Position (CMP) sensors and the ignition interference capacitor electrical connectors.
