Cylinder Head LH — 2016 workshop reference 189

Cylinder Head LH — original illustration 1, reference 189Original colors & callouts · Select to enlarge

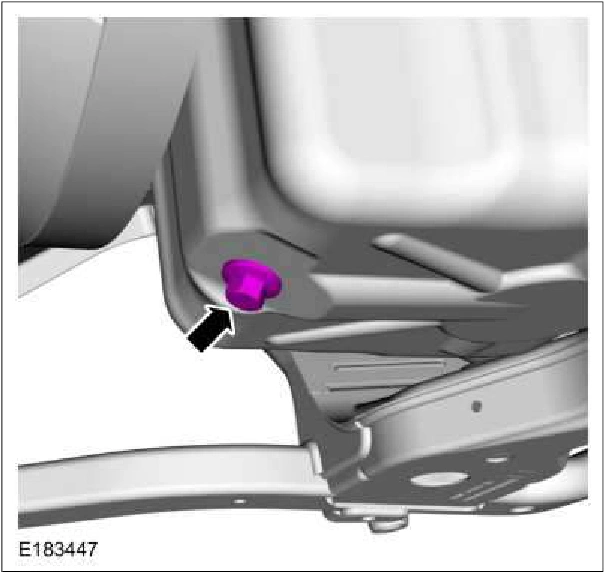

10. Remove the oil pan drain plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment Install the oil pan drain plug. Torque : 19 lb.ft (26 Nm)

Cylinder Head LH — original illustration 2, reference 189Original colors & callouts · Select to enlarge

11. Remove and discard the engine oil filter.

Source reference 189
