2016 workshop · Engine

Cylinder Head LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 190 / 6,619HTML edition
← Chapter contentsProcedure contents

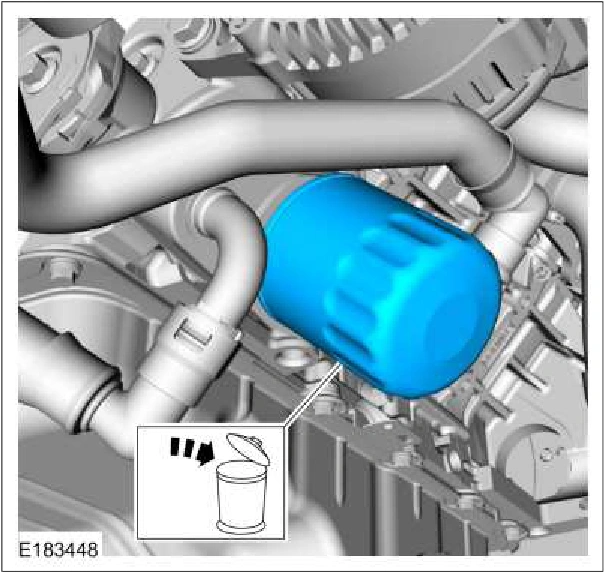

Cylinder Head LH — original illustration 1, reference 190Original colors & callouts · Select to enlarge

12. NOTE: Do not lubricate the O-ring seal.

Install a new oil filter. Torque : Stage 1: 44 lb.in (5 Nm) Stage 2: 180°

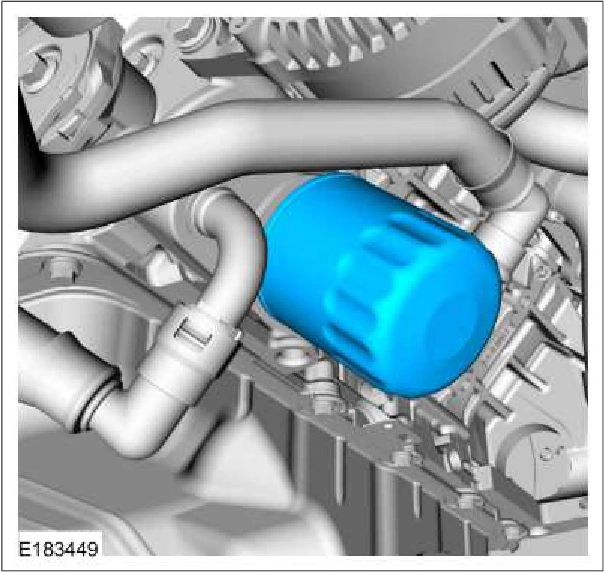

Cylinder Head LH — original illustration 2, reference 190Original colors & callouts · Select to enlarge

13. Fill the engine with clean engine oil. Refer to: Specifications (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Specifications). Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
