Cylinder Head RH — 2016 workshop reference 193

Cylinder Head RH — original illustration 1, reference 193Original colors & callouts · Select to enlarge

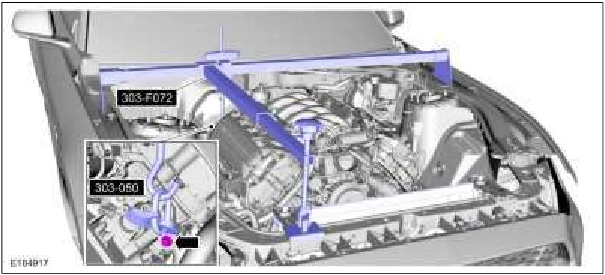

6. Using the special tools, lower the engine onto the RH engine mount. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine. , 303-F072 Support Bar, Engine.

Cylinder Head RH — original illustration 2, reference 193Original colors & callouts · Select to enlarge

7. Disconnect the heater hose.
