Cylinder Head RH — 2016 workshop reference 195

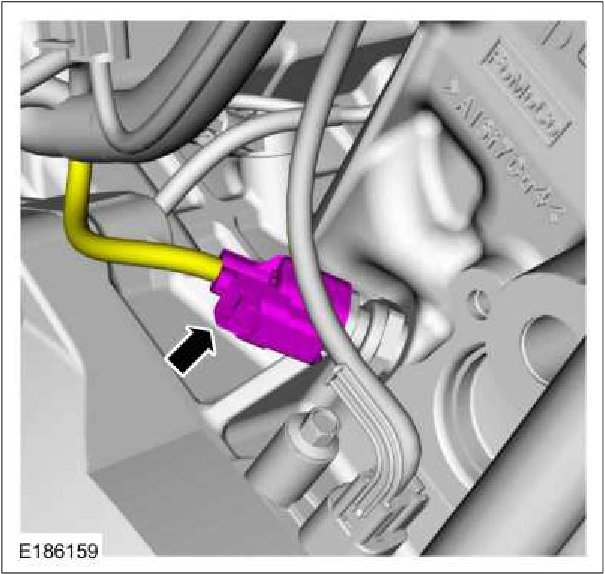

Cylinder Head RH — original illustration 1, reference 195Original colors & callouts · Select to enlarge

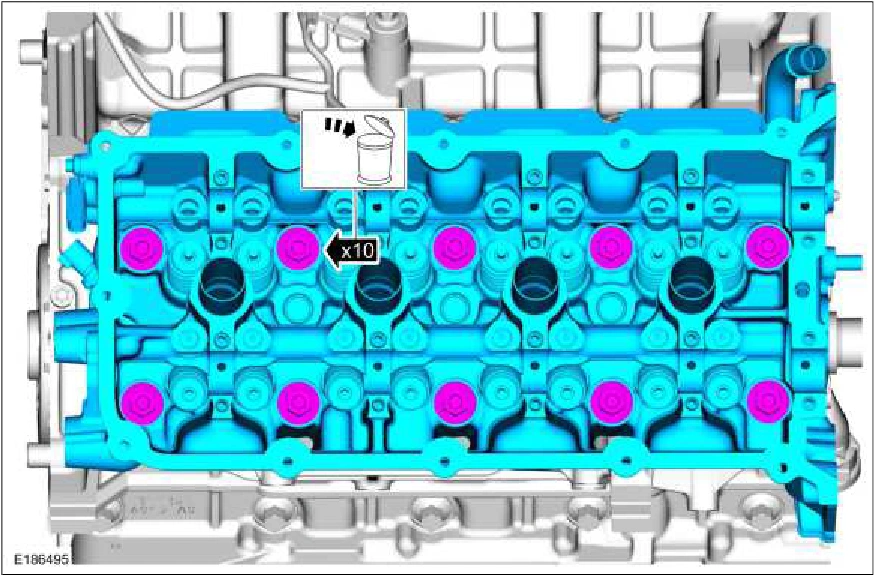

10. Remove and discard the bolts.

Remove the cylinder head.

Cylinder Head RH — original illustration 2, reference 195Original colors & callouts · Select to enlarge

11. Remove and discard the cylinder head gasket.
