Cylinder Head RH — 2016 workshop reference 194

Cylinder Head RH — original illustration 1, reference 194Original colors & callouts · Select to enlarge

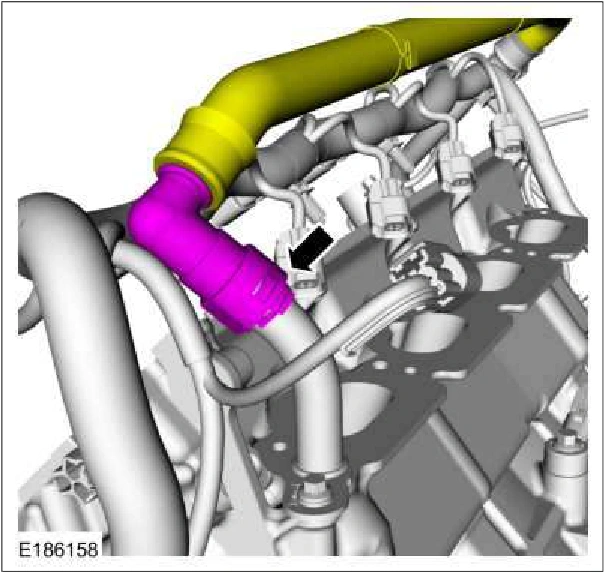

8. Disconnect the camshaft position sensor electrical connector.

Cylinder Head RH — original illustration 2, reference 194Original colors & callouts · Select to enlarge

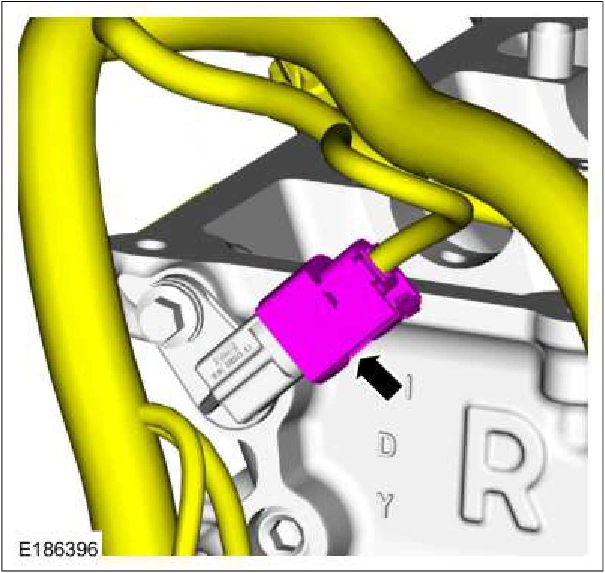

9. Disconnect the CHT electrical connector.

Source reference 194
