2016 workshop · Engine

Cylinder Head LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 188 / 6,619HTML edition
← Chapter contentsProcedure contents
Cylinder Head LH — original illustration 1, reference 188Original colors & callouts · Select to enlarge

7. Install the following items:

1. Refer to: Catalytic Converter LH (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Camshaft LH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

8. NOTE: Automatic transmission shown, manual transmission similar.

Connect the LH catalyst monitor sensor electrical connector and attach the harness retainers.

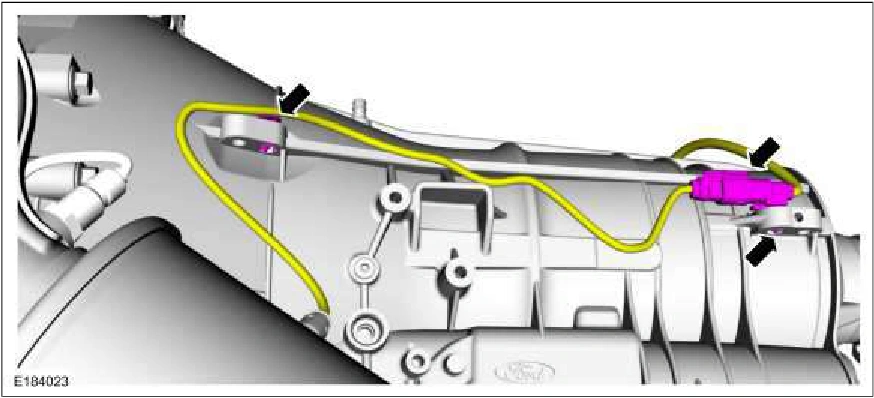

Cylinder Head LH — original illustration 2, reference 188Original colors & callouts · Select to enlarge

9. Connect the LH HO2S electrical connector and attach the harness retainer.

Source reference 188
