Cylinder Head LH — 2016 workshop reference 187

Cylinder Head LH — original illustration 1, reference 187Original colors & callouts · Select to enlarge

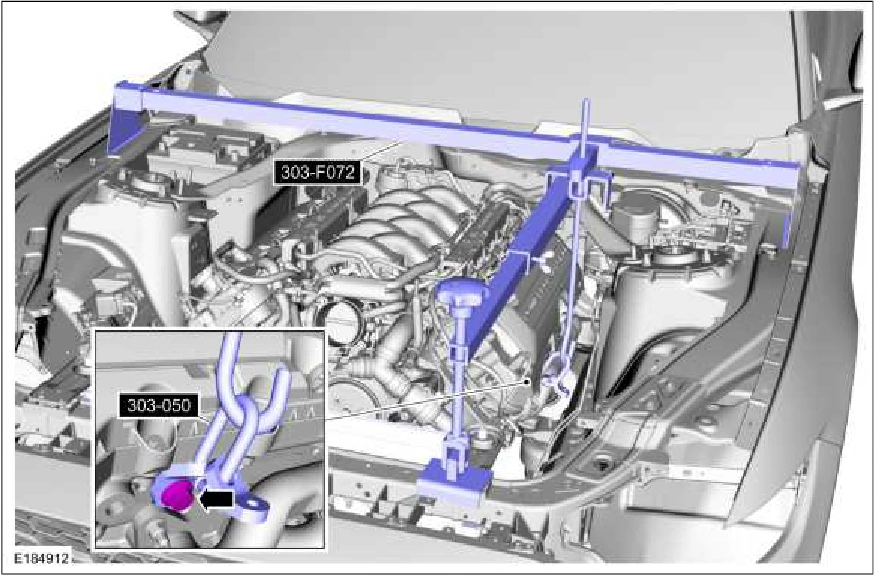

5. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine. , 303-F072 Support Bar, Engine. Using the special tools raise the LH side of the engine 25 mm (1 inch).

Cylinder Head LH — original illustration 2, reference 187Original colors & callouts · Select to enlarge

6. Remove the bolts, stud bolt and the LH engine mount bracket.

Source reference 187
