Crankshaft Rear Seal with Retainer Plate — 2016 workshop reference 177

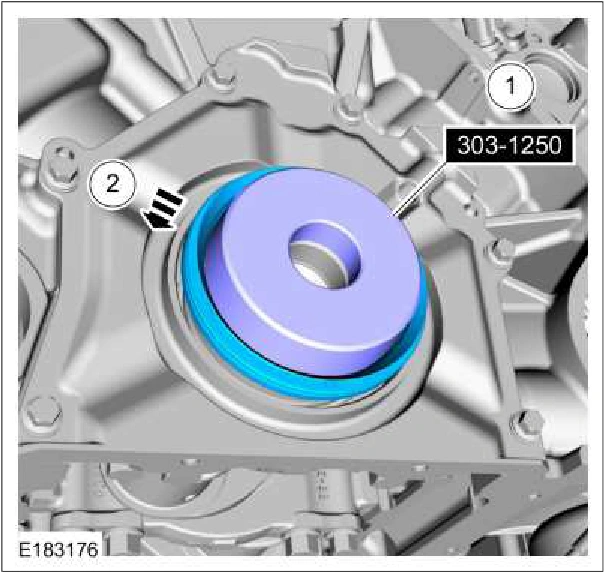

Crankshaft Rear Seal with Retainer Plate — original illustration 1, reference 177Original colors & callouts · Select to enlarge

5. Using the special tools, install the crankshaft rear seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 303-1250 Seal Installer, Rear Main.

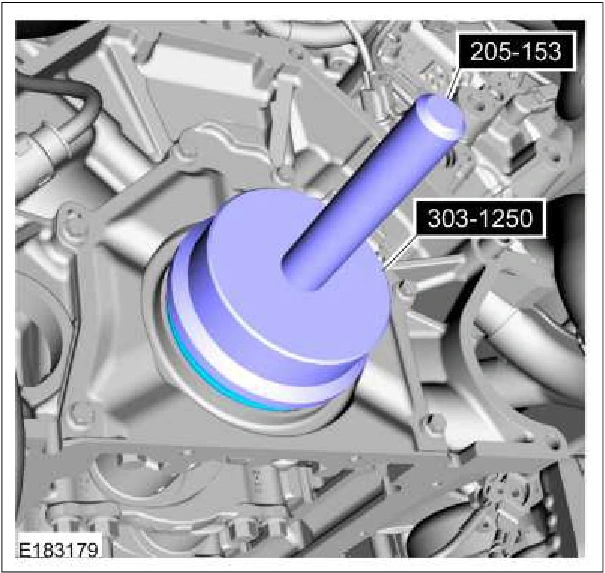

Crankshaft Rear Seal with Retainer Plate — original illustration 2, reference 177Original colors & callouts · Select to enlarge

6. Install the CKP sensor and the bolt. Torque : 89 lb.in (10 Nm) Connect the CKP sensor electrical connector.
