Crankshaft Rear Seal — 2016 workshop reference 171

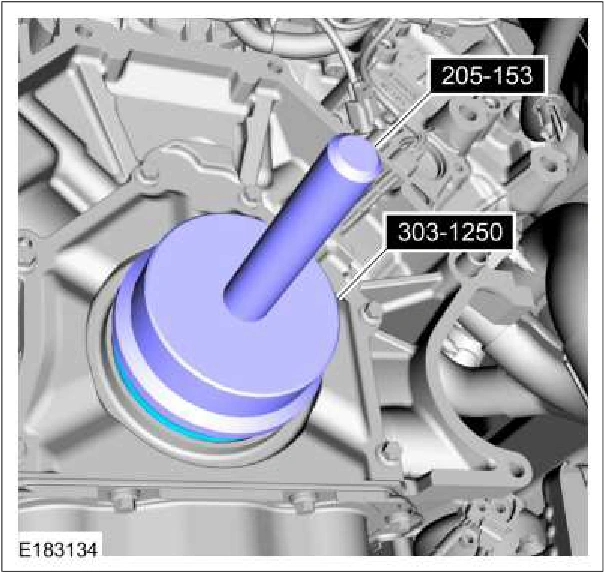

Crankshaft Rear Seal — original illustration 1, reference 171Original colors & callouts · Select to enlarge

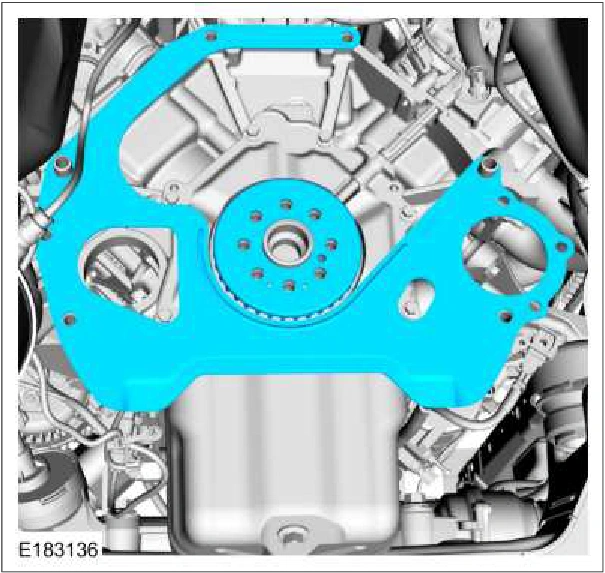

4. NOTE: Automatic transmission spacer plate shown, manual transmission similar.

Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

Crankshaft Rear Seal — original illustration 2, reference 171Original colors & callouts · Select to enlarge

5. Install the flexplate or flywheel. Refer to: Flexplate (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Flywheel (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
