23. Make a jumper harness to deploy the airbag module by obtaining 2 wires (20 gauge minimum) at
least 9.14 m (30 ft). At one end of the jumper harness, connect the wires together.

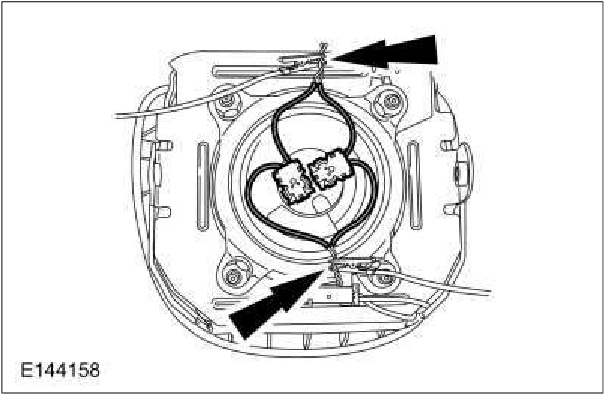

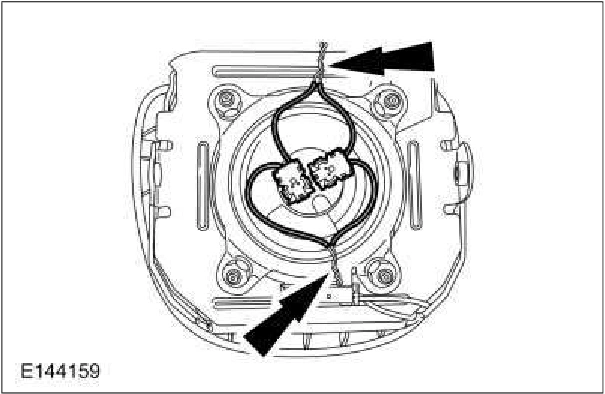

24. Using the end of the jumper harness where the wires are not connected together, attach each wire of the jumper harness to each wire of the airbag or to the twisted-together wires if multiple loops. Use tape or other insulating material to make sure the leads do not make contact with each other.
25. NOTE: Make sure the airbag connections are maintained.
For driver airbags, with the stack of tires upright and the wheel on the bottom, carefully place the driver airbag, with the trim cover facing up, on the wheel.
