Driver Knee Airbag — 2016 workshop reference 2132

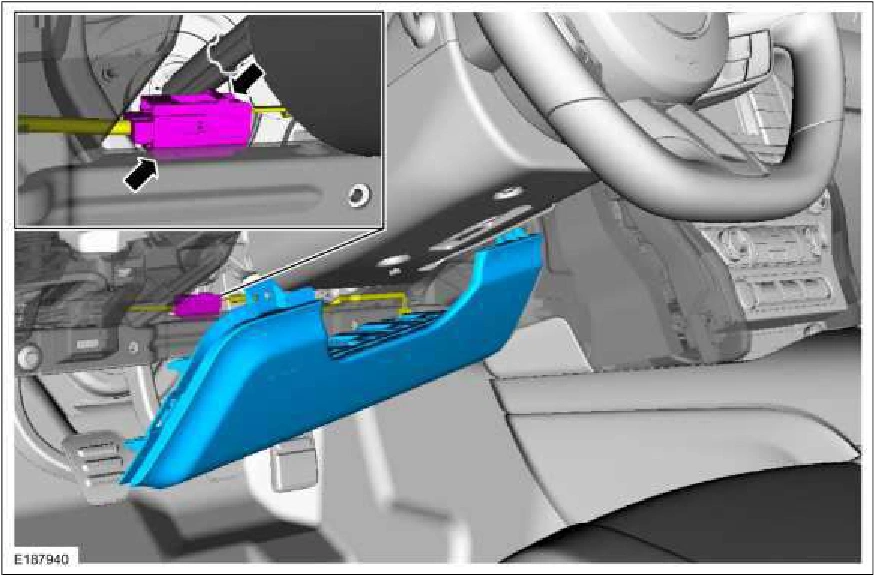

Driver Knee Airbag — original illustration 1, reference 2132Original colors & callouts · Select to enlarge

Right hand drive vehicles

8. Detach the driver knee airbag wire harness pin-type retainer.

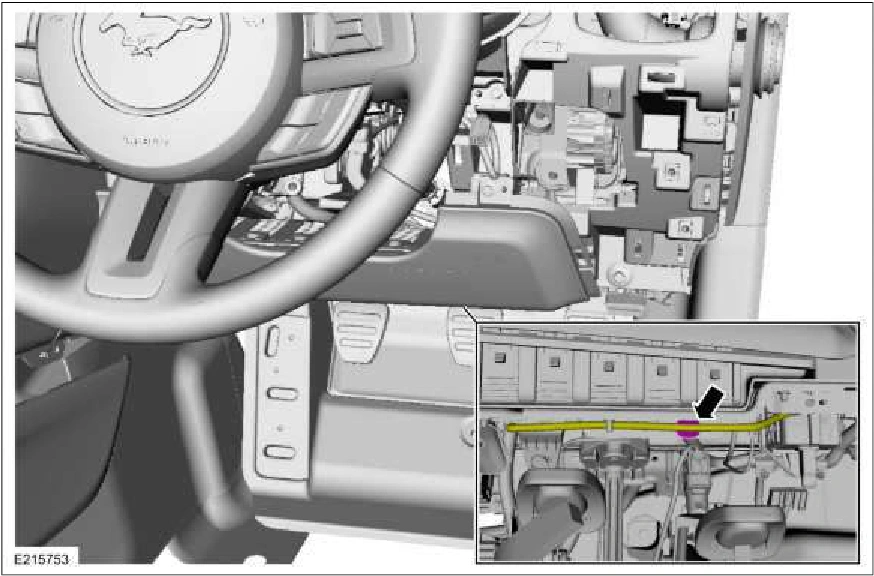

Driver Knee Airbag — original illustration 2, reference 2132Original colors & callouts · Select to enlarge

9. Detach and disconnect the electrical connector and remove the driver knee airbag.
