Driver Knee Airbag — 2016 workshop reference 2131

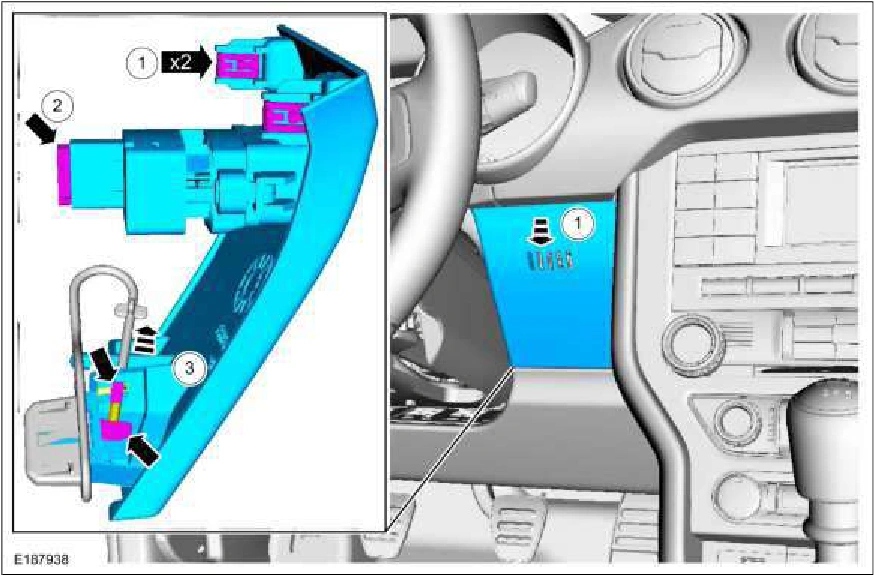

Driver Knee Airbag — original illustration 1, reference 2131Original colors & callouts · Select to enlarge

Step 6

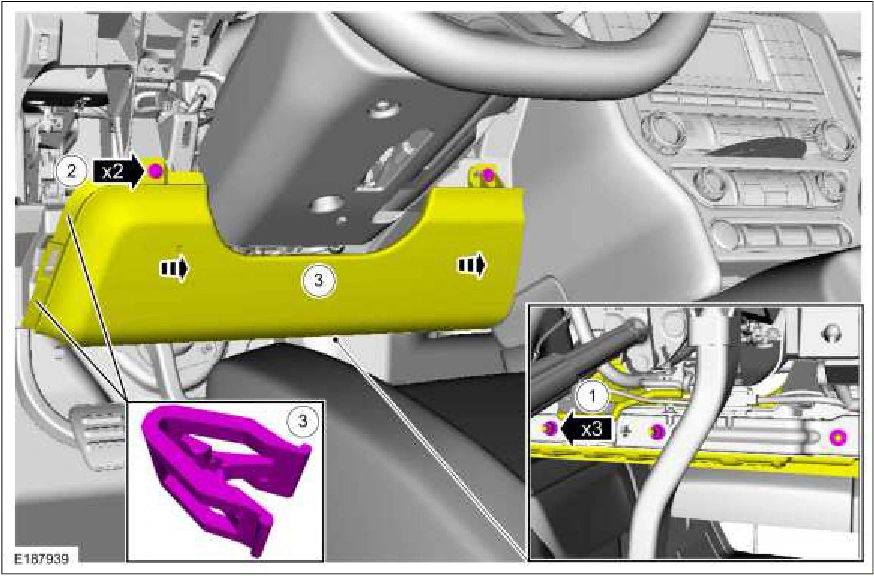

1. From under the instrument panel, remove the nuts. Torque : 71 lb.in (8 Nm)

2. Remove the screws. Torque : 22 lb.in (2.5 Nm)

3. Disengage the clips and separate the driver knee airbag from the instrument panel.

Driver Knee Airbag — original illustration 2, reference 2131Original colors & callouts · Select to enlarge

Left hand drive vehicles

7. Detach and disconnect the electrical connector and remove the driver knee airbag.
