Driver Airbag — 2016 workshop reference 2128

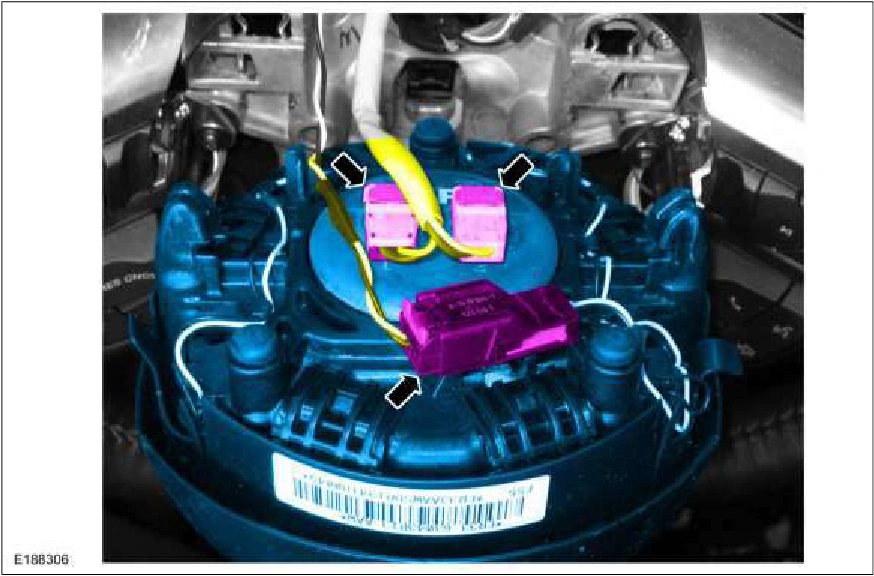

Driver Airbag — original illustration 1, reference 2128Original colors & callouts · Select to enlarge

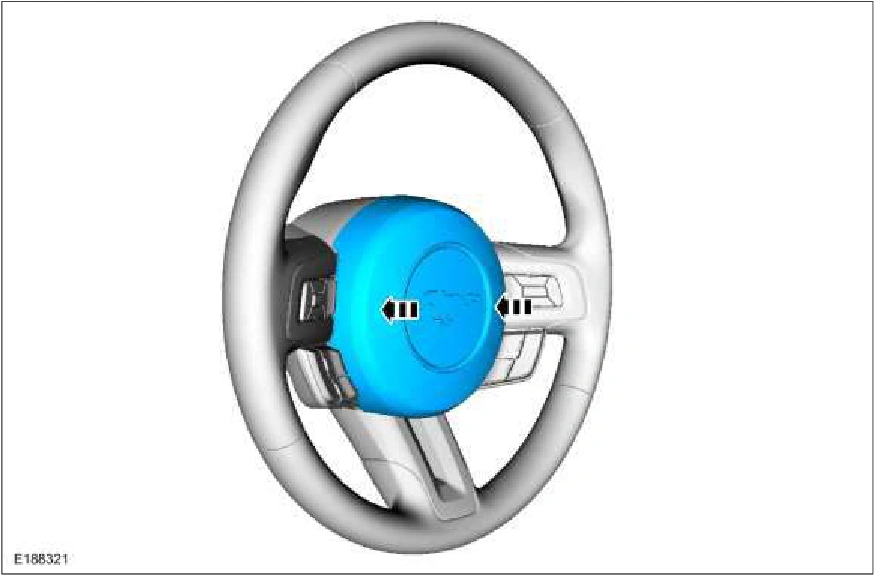

2. Align the driver airbag to the steering wheel and push in, engaging the driver airbag retainers to the spring clips.

Driver Airbag — original illustration 2, reference 2128Original colors & callouts · Select to enlarge

3. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
