Driver Airbag — 2016 workshop reference 2125

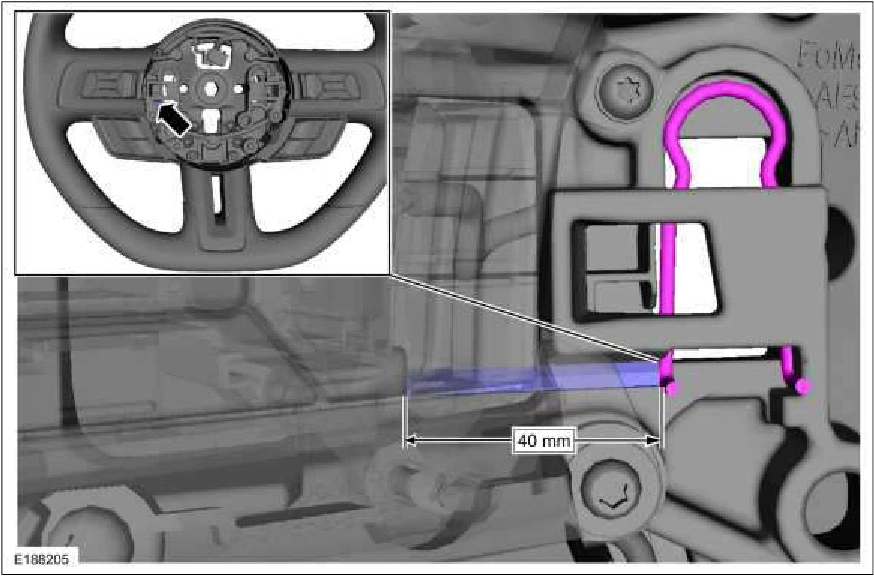

Driver Airbag — original illustration 1, reference 2125Original colors & callouts · Select to enlarge

Step 4

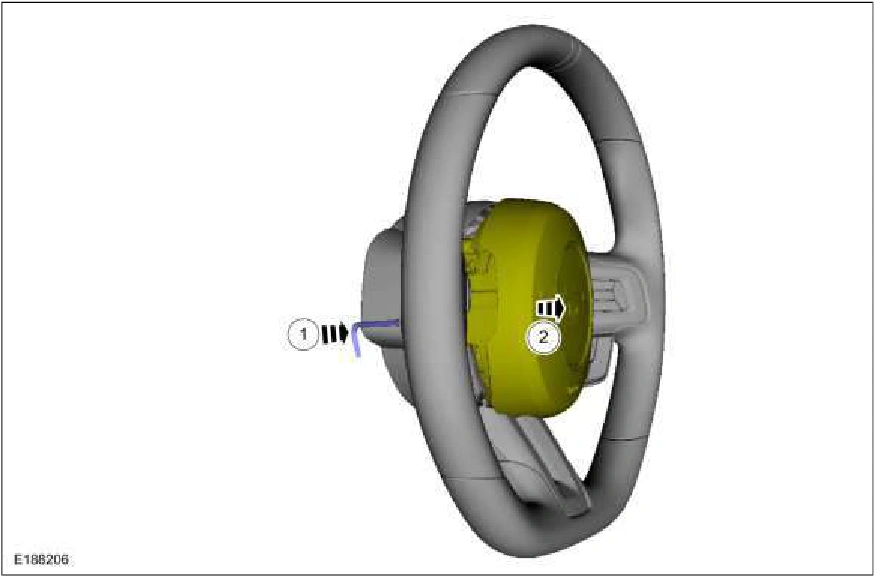

1. Push in on the steering wheel spring clip to release the driver airbag retainer.

2. Pull the driver airbag out and separate it from the steering wheel.

Driver Airbag — original illustration 2, reference 2125Original colors & callouts · Select to enlarge

5. At the side of the steering wheel cover, locate the hole and insert a 3 mm (0.125 inch) Allen key.
