Driver Airbag — 2016 workshop reference 2127

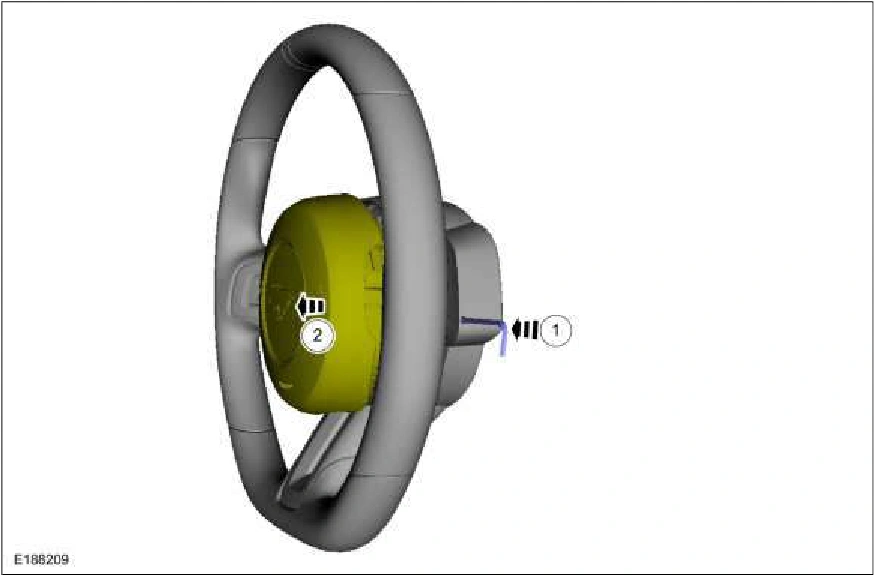

Driver Airbag — original illustration 1, reference 2127Original colors & callouts · Select to enlarge

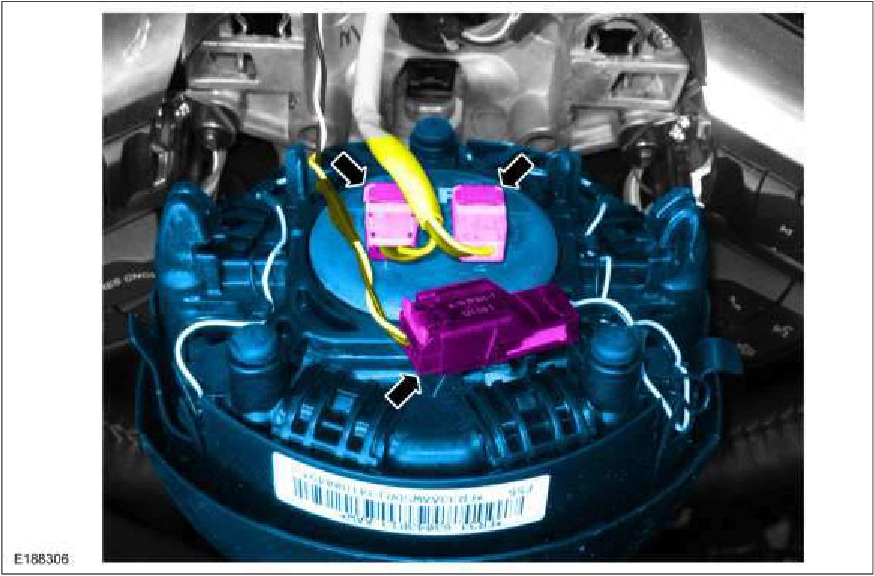

8. Disconnect the 3 driver airbag electrical connectors.

Driver Airbag — original illustration 2, reference 2127Original colors & callouts · Select to enlarge

Installation

WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered before reconnecting the component. Refer to the Supplemental Restraint System depowering General Procedure in section 501-20B. Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

1. Connect the 3 driver airbag electrical connectors.

Source reference 2127

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
