Driver Knee Airbag — 2016 workshop reference 2130

Driver Knee Airbag — original illustration 1, reference 2130Original colors & callouts · Select to enlarge

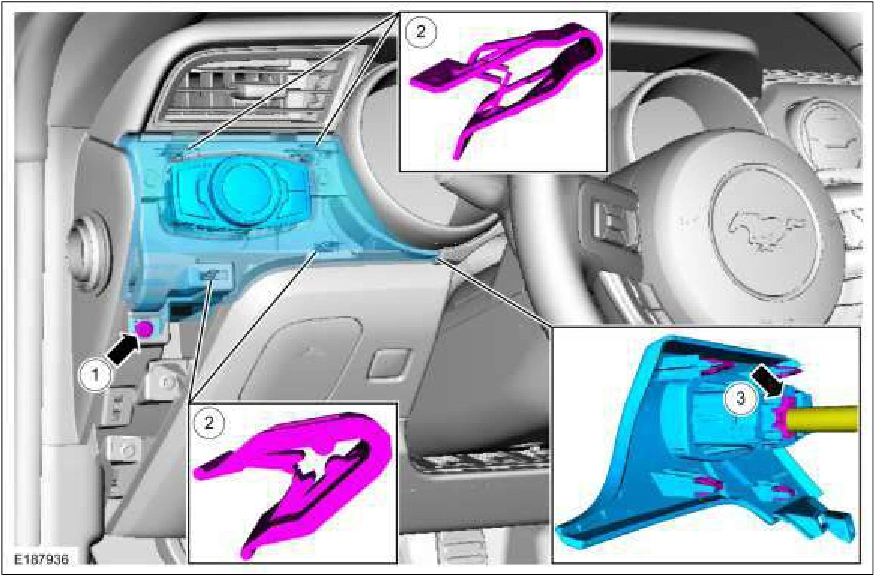

Step 4

1. Remove the screws.

2. Detach the trim panel.

3. Disconnect the electrical connector and remove the trim panel.

Driver Knee Airbag — original illustration 2, reference 2130Original colors & callouts · Select to enlarge

Step 5

1. Detach the ambient air temp grille panel.

2. Disconnect the electrical connector.

3. Detach the tether and remove the ambient air temp grille panel.
