Driver Airbag — 2016 workshop reference 2126

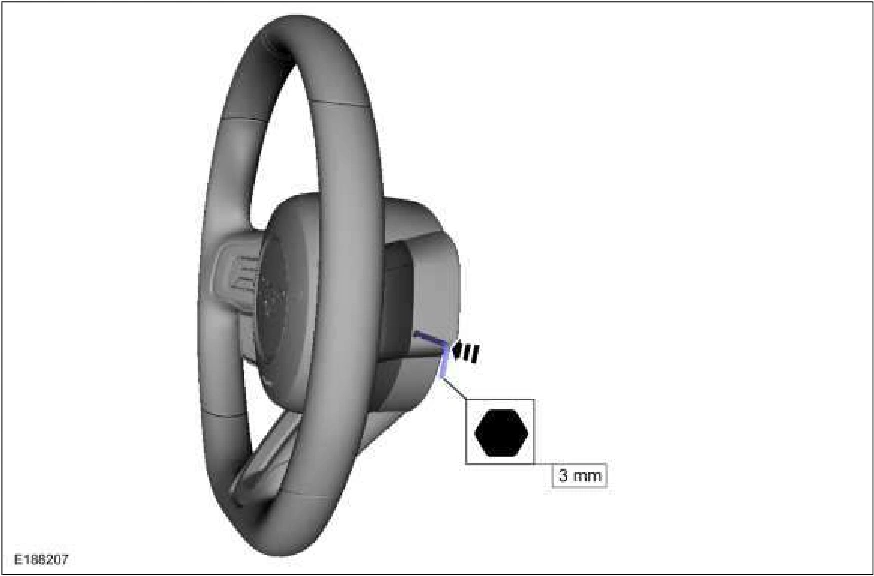

Driver Airbag — original illustration 1, reference 2126Original colors & callouts · Select to enlarge

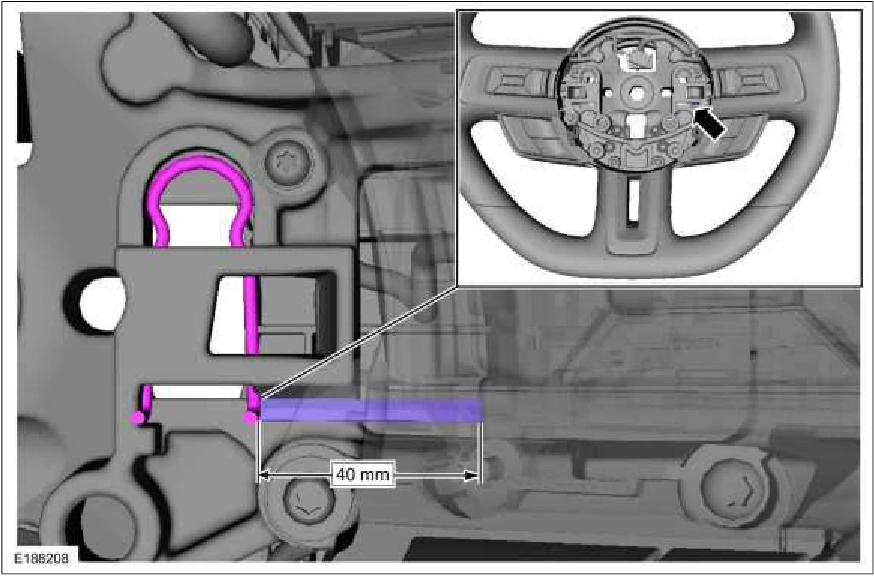

6. NOTE: The driver airbag has been removed for clarity.

Angle the inserted end of the Allen key up and toward the front of the vehicle for ideal contact with the spring clip.

Driver Airbag — original illustration 2, reference 2126Original colors & callouts · Select to enlarge

Step 7

1. Push in on the steering wheel spring clip to release the driver airbag retainer.

2. Pull the driver airbag out and separate it from the steering wheel.
