Seat Position Sensor

501-20B Supplemental Restraint System 2016 Mustang

Removal and Installation Procedure revision date: 04/13/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

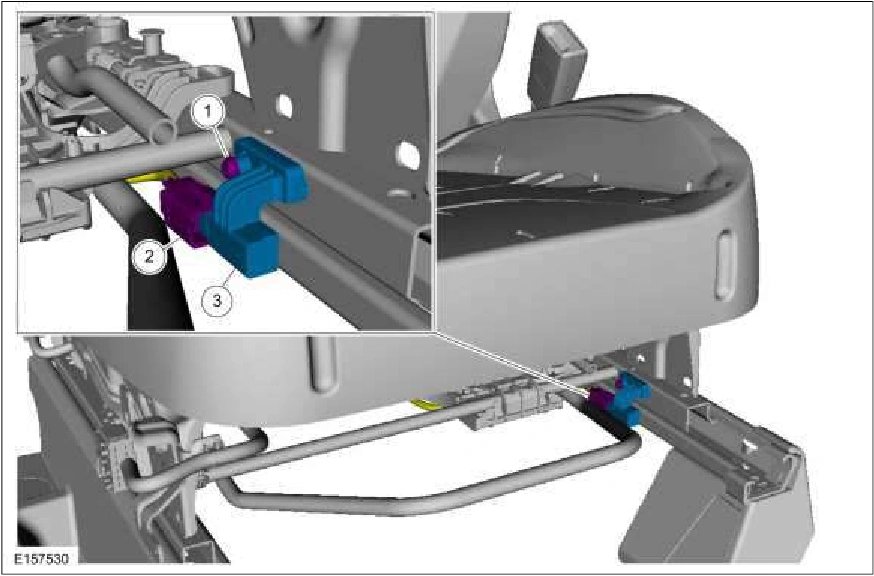

1. NOTE: RH manual seat shown, other seats similar.

1. Remove the screw. Torque : 8 lb.in (0.9 Nm)

2. Disconnect the electrical connector.

3. Remove the seat position sensor.

Seat Position Sensor — original illustration 1, reference 2160Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 2160
