Side Airbag — 2016 workshop reference 2163

Side Airbag — original illustration 1, reference 2163Original colors & callouts · Select to enlarge

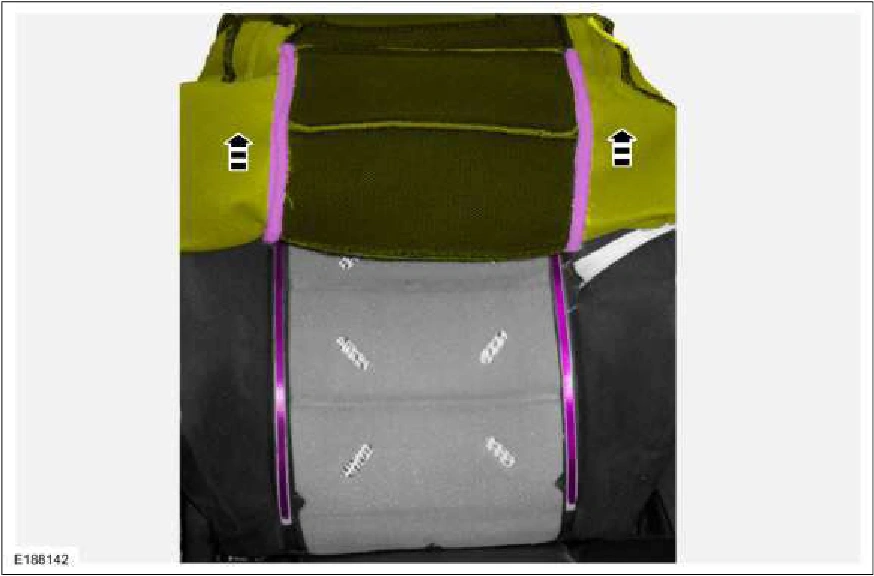

6. Detach the side airbag deployment chute retainers and position aside.

Side Airbag — original illustration 2, reference 2163Original colors & callouts · Select to enlarge

7. Pull the side airbag deployment chute through the backrest foam.
