Side Airbag — 2016 workshop reference 2166

Side Airbag — original illustration 1, reference 2166Original colors & callouts · Select to enlarge

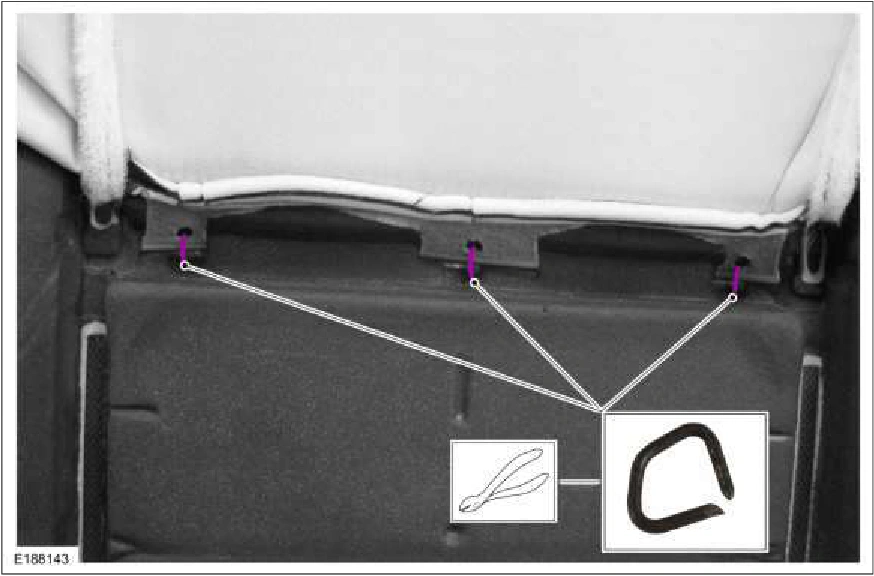

12. Remove the hog rings.

Side Airbag — original illustration 2, reference 2166Original colors & callouts · Select to enlarge

13. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or

the hook-and-loop strips may be torn from the seat backrest foam pad.

Detach the hook-and-loop strips.
