Side Airbag — 2016 workshop reference 2167

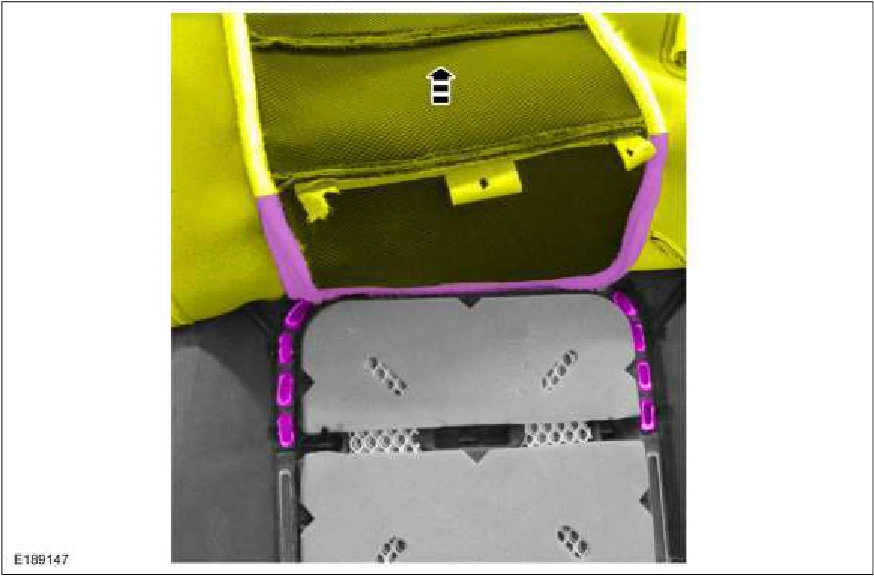

Side Airbag — original illustration 1, reference 2167Original colors & callouts · Select to enlarge

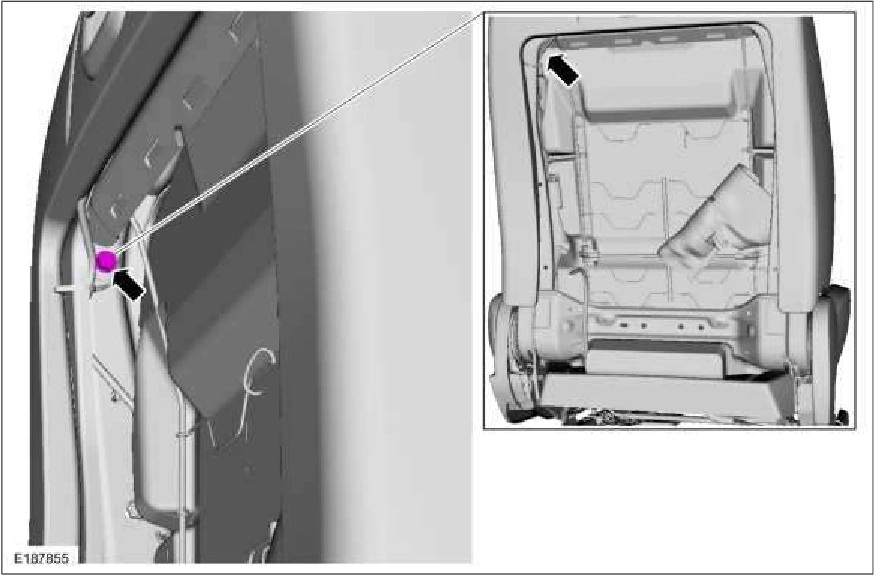

14. Remove the side airbag bolt. Torque : 53 lb.in (6 Nm)

Side Airbag — original illustration 2, reference 2167Original colors & callouts · Select to enlarge

Step 15

1. Detach the side airbag from the backrest frame.

2. Slide the locking wedge out, disconnect the electrical connector and remove the side airbag.
