Side Curtain Airbag
Base Part Number: 042D94
Removal
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: Removal steps in this procedure may contain installation details.
1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
2. Remove the headliner. Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).
3. NOTE: Follow the unique instructions or graphic for this step in installation.

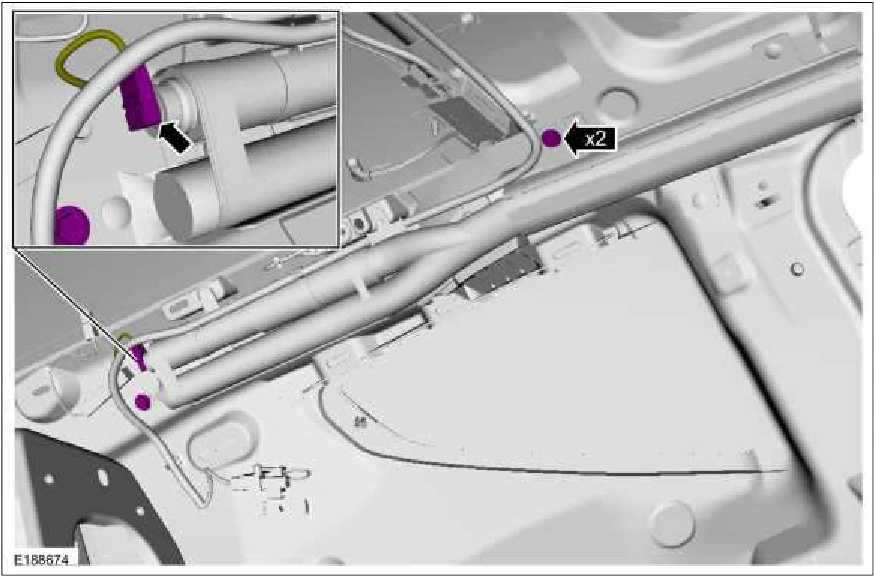

Disconnect the electrical connector and remove the screws.
4. NOTE: Follow the unique instructions or graphic for this step in installation.
Remove the screws.
