Side Curtain Airbag — 2016 workshop reference 2171

Side Curtain Airbag — original illustration 1, reference 2171Original colors & callouts · Select to enlarge

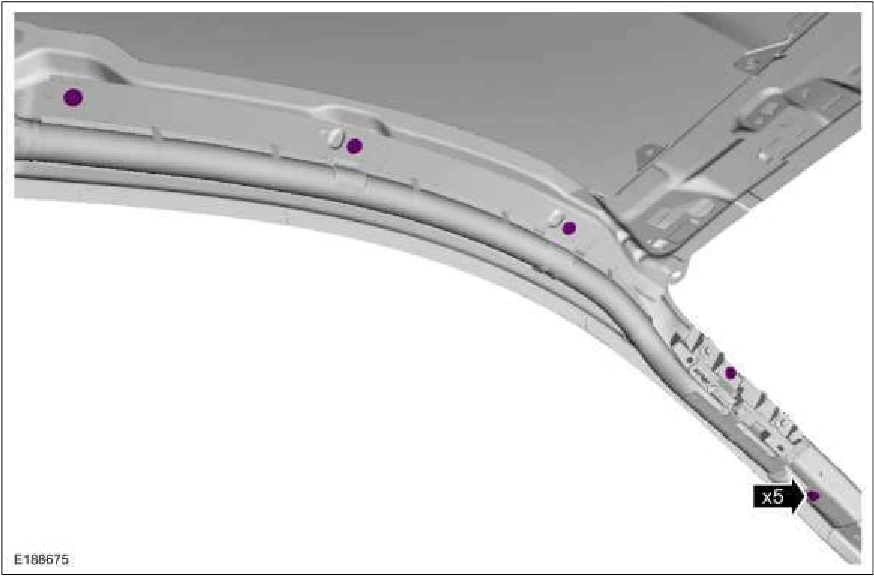

5. Remove the pin-type retainers at the A-pillar.

Side Curtain Airbag — original illustration 2, reference 2171Original colors & callouts · Select to enlarge

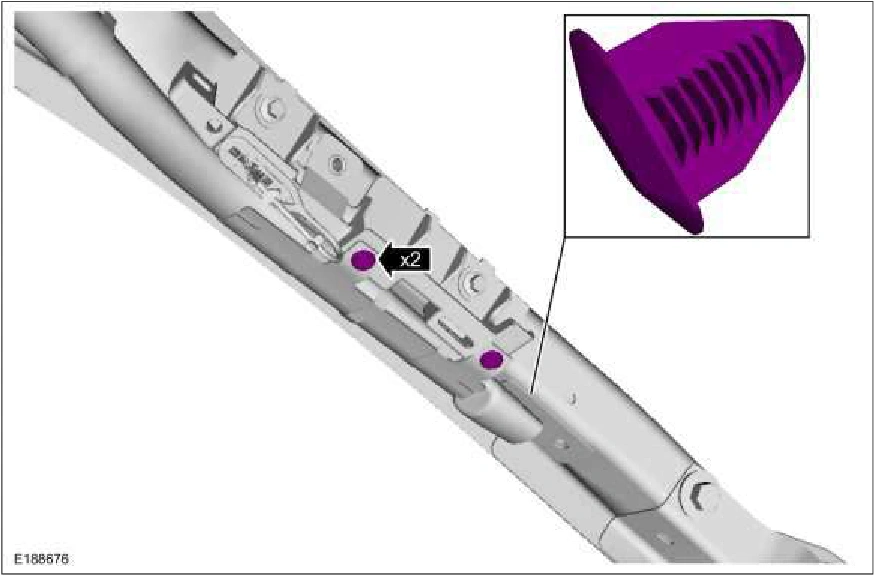

6. Disengage the retainer and position the side curtain airbag away from the A-pillar.
