Side Curtain Airbag — 2016 workshop reference 2172

Side Curtain Airbag — original illustration 1, reference 2172Original colors & callouts · Select to enlarge

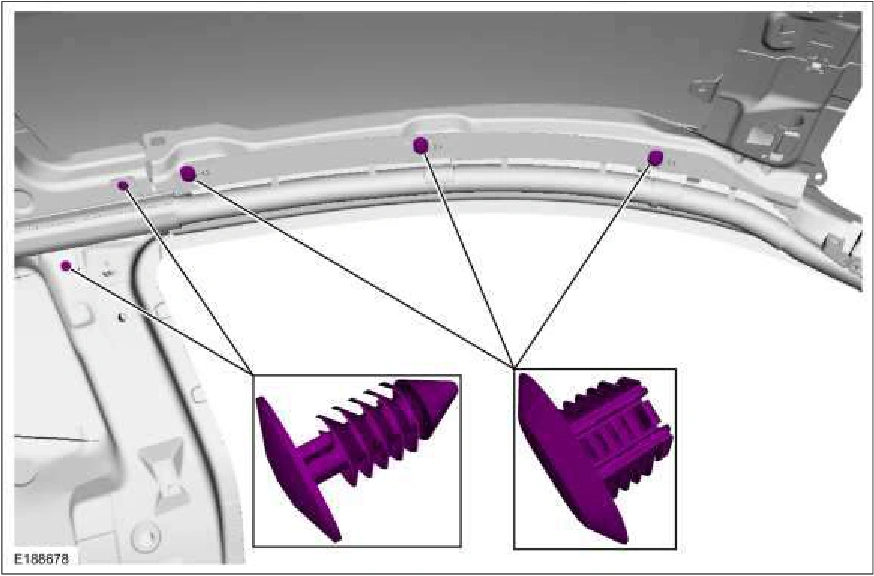

7. Disengage the pin-type retainers.

Side Curtain Airbag — original illustration 2, reference 2172Original colors & callouts · Select to enlarge

Step 8

1. Remove the pin-type retainer.

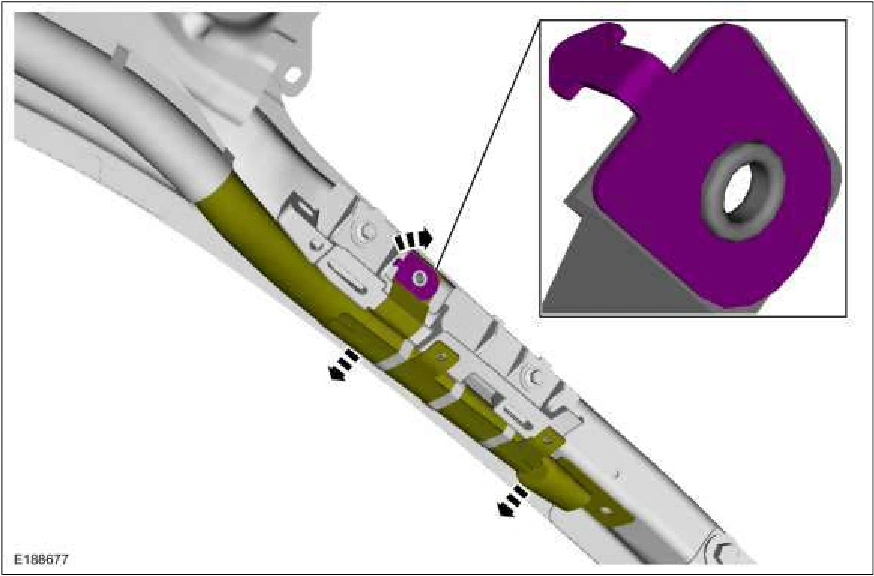

2. Slide the side curtain airbag forward and out, disengaging the T-tab from the sheet metal and remove the side curtain airbag.

Source reference 2172
