Side Airbag - Vehicles With: Recaro Seats — 2016 workshop reference 2175

501-20B Supplemental Restraint System 2016 Mustang

Removal and Installation Procedure revision date: 04/13/2015

Side Airbag - Vehicles With: Recaro Seats

Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

2. Detach the backrest cover J-clips and position the backrest cover upward.

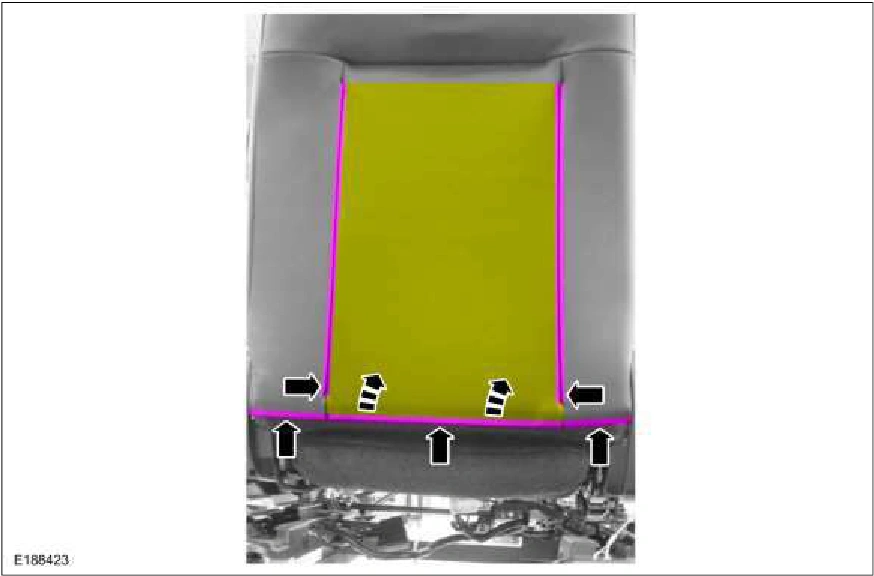

Side Airbag - Vehicles With: Recaro Seats — original illustration 1, reference 2175Original colors & callouts · Select to enlarge

3. Detach the side airbag deployment chute J-clips from the backrest frame.

Source reference 2175
