Side Airbag - Vehicles With: Recaro Seats — 2016 workshop reference 2176

Side Airbag - Vehicles With: Recaro Seats — original illustration 1, reference 2176Original colors & callouts · Select to enlarge

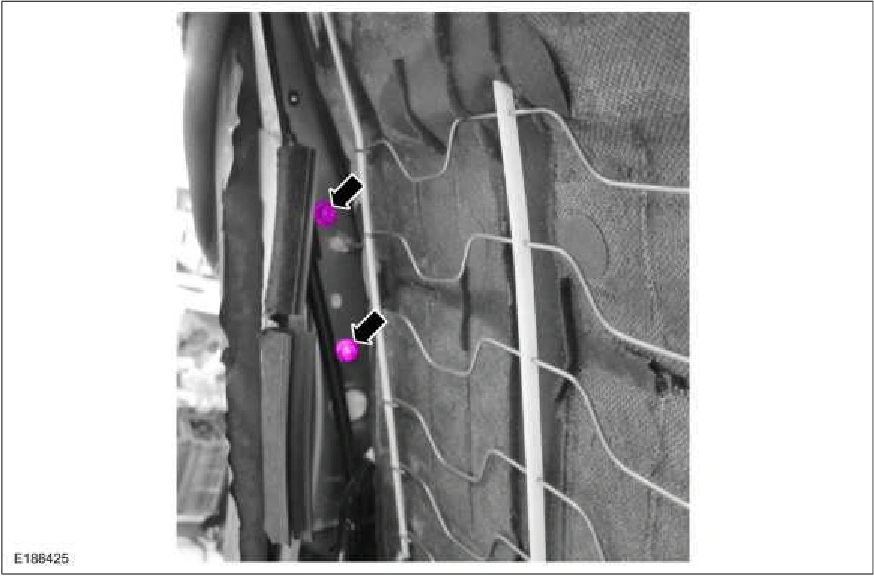

4. Remove the side airbag nuts. Torque : 53 lb.in (6 Nm)

Side Airbag - Vehicles With: Recaro Seats — original illustration 2, reference 2176Original colors & callouts · Select to enlarge

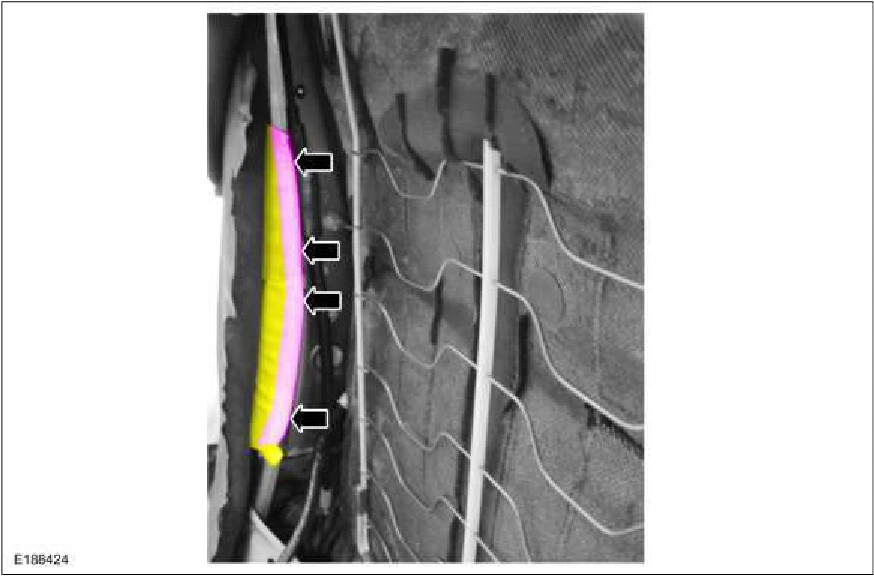

5. NOTICE: Use care when separating the backrest cover from the hook-and-loop strip, or the

hook-and-loop strip can be torn from the backrest foam pad.

NOTICE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

Detach the hook-and-loop strips, the hook-and-arrows and position the backrest cover up.
