Side Airbag - Vehicles With: Recaro Seats

501-20B Supplemental Restraint System

2016 MustangReference 2,178 / 6,619HTML edition

← Chapter contents Procedure contents

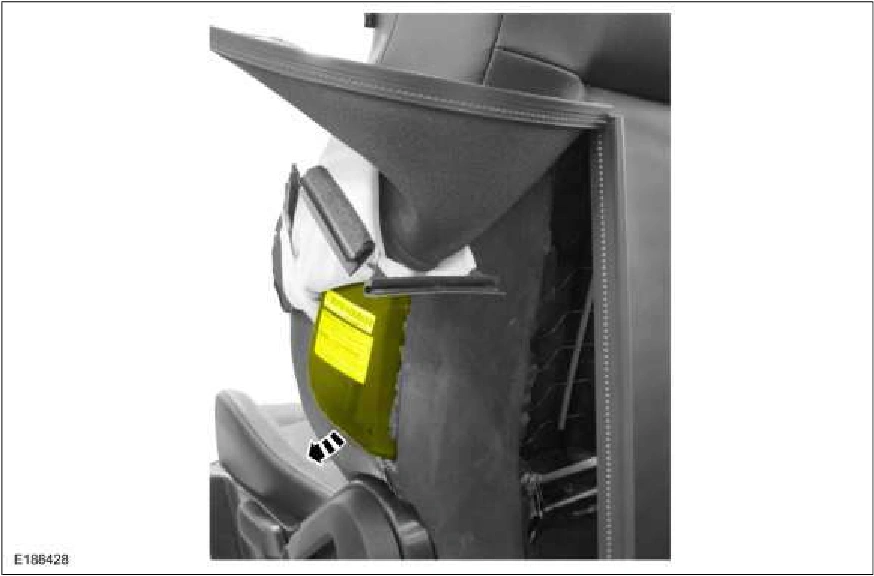

Side Airbag - Vehicles With: Recaro Seats — original illustration 1, reference 2178Original colors & callouts · Select to enlarge

8. Separate the deployment chute from the side airbag studs.

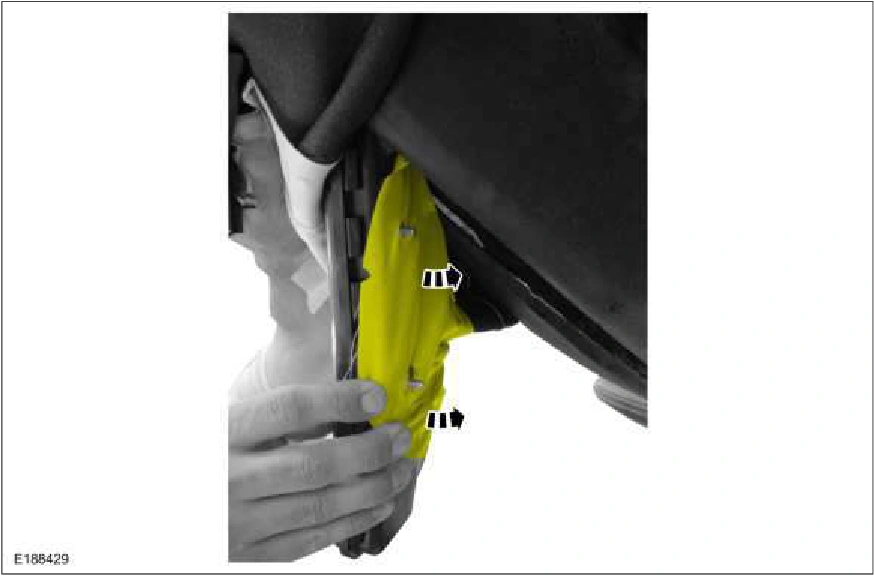

Side Airbag - Vehicles With: Recaro Seats — original illustration 2, reference 2178Original colors & callouts · Select to enlarge

9. Position the side airbag back into the backrest foam pad.
