Side Airbag - Vehicles With: Recaro Seats — 2016 workshop reference 2179

Side Airbag - Vehicles With: Recaro Seats — original illustration 1, reference 2179Original colors & callouts · Select to enlarge

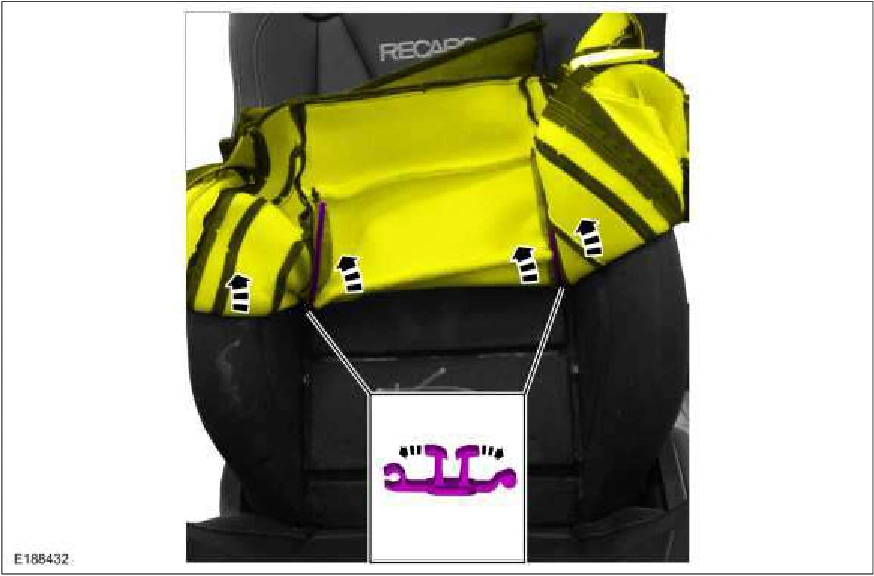

10. Detach the hook-and-arrows and position the backrest cover up.

Side Airbag - Vehicles With: Recaro Seats — original illustration 2, reference 2179Original colors & callouts · Select to enlarge

Step 11

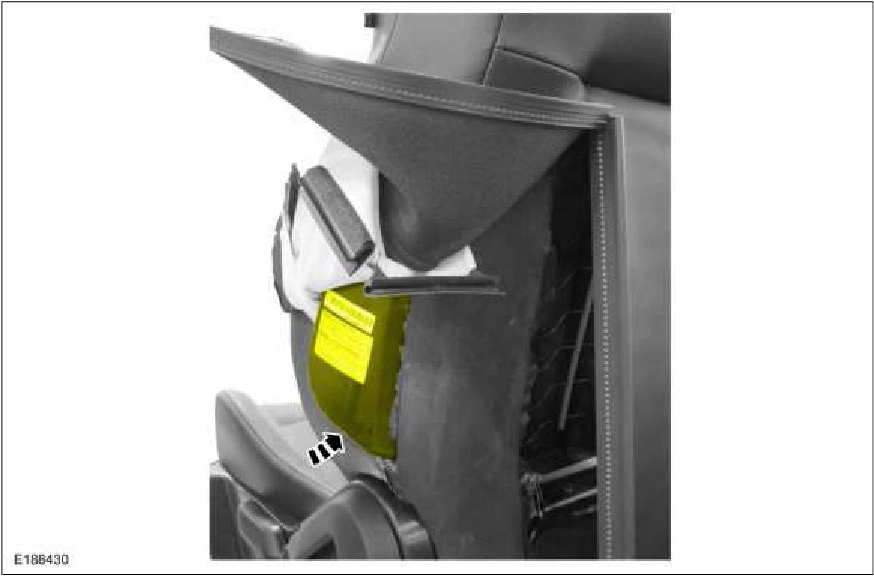

1. Detach the side airbag from the backrest frame.

2. Slide the locking wedge out, disconnect the electrical connector and remove the side airbag.

Source reference 2179
