Side Airbag — 2016 workshop reference 2165

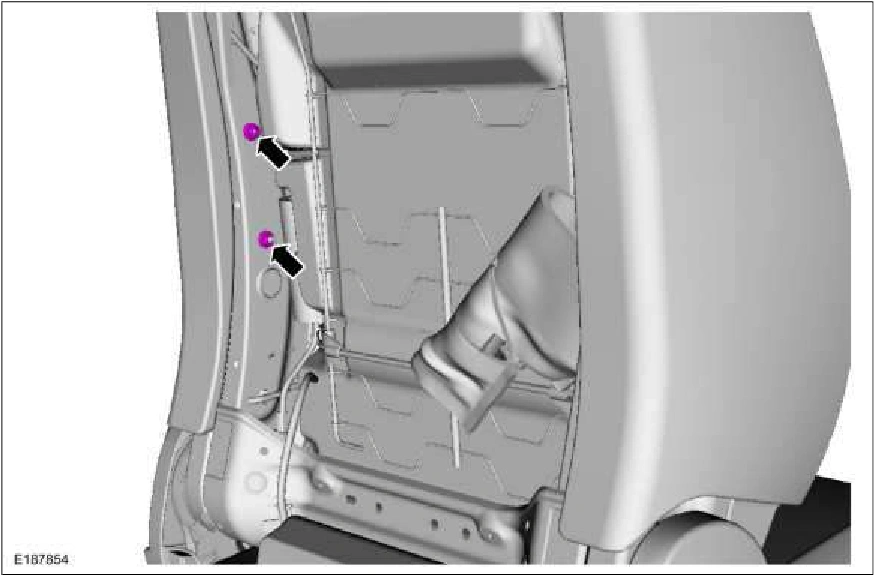

Side Airbag — original illustration 1, reference 2165Original colors & callouts · Select to enlarge

Step 10

1. Detach the side airbag from the backrest frame.

2. Slide the locking wedge out, disconnect the electrical connector and remove the side airbag.

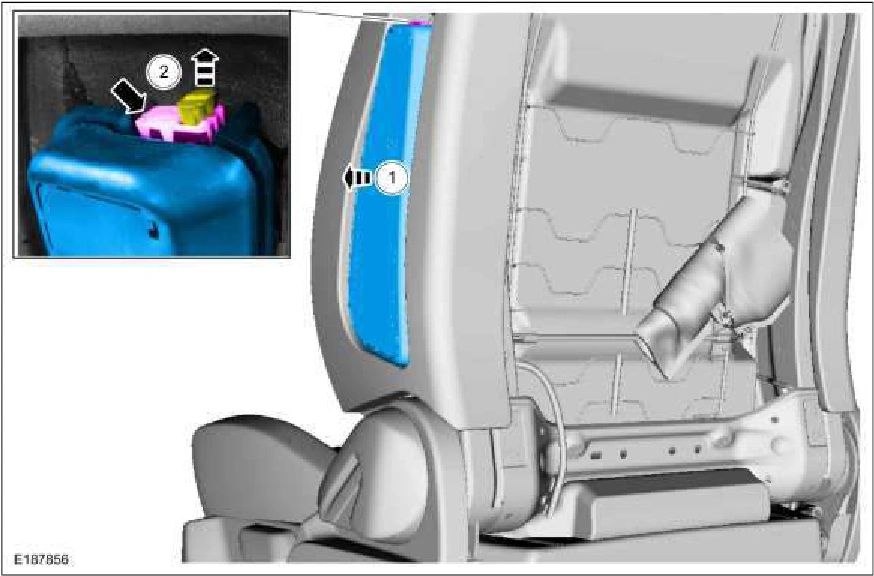

Side Airbag — original illustration 2, reference 2165Original colors & callouts · Select to enlarge

Upper side airbag

11. Release the J-clip from the backrest frame.

Source reference 2165
