Side Airbag — 2016 workshop reference 2162

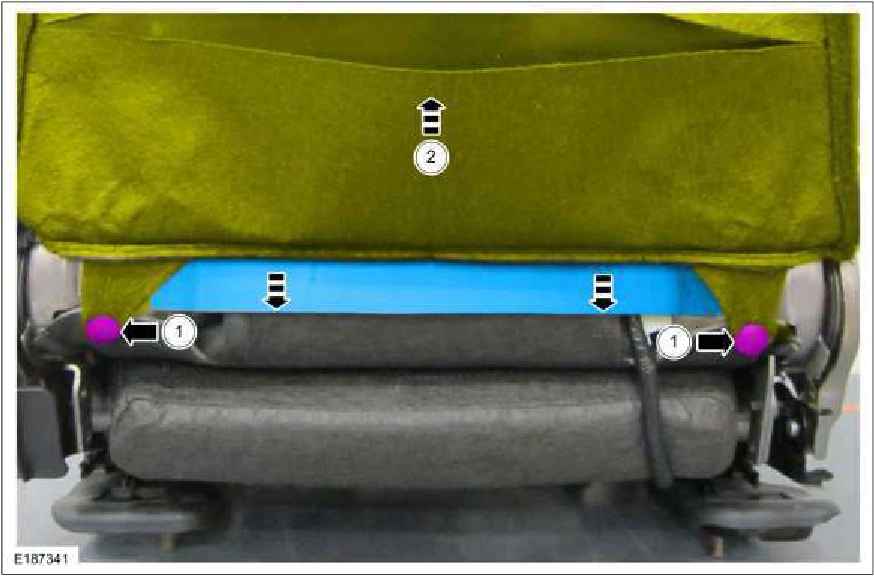

3. Remove the backrest cover insert.

1. Remove the pin-type retainers.

2. Position the backrest cover upwards and remove the insert.

Side Airbag — original illustration 1, reference 2162Original colors & callouts · Select to enlarge

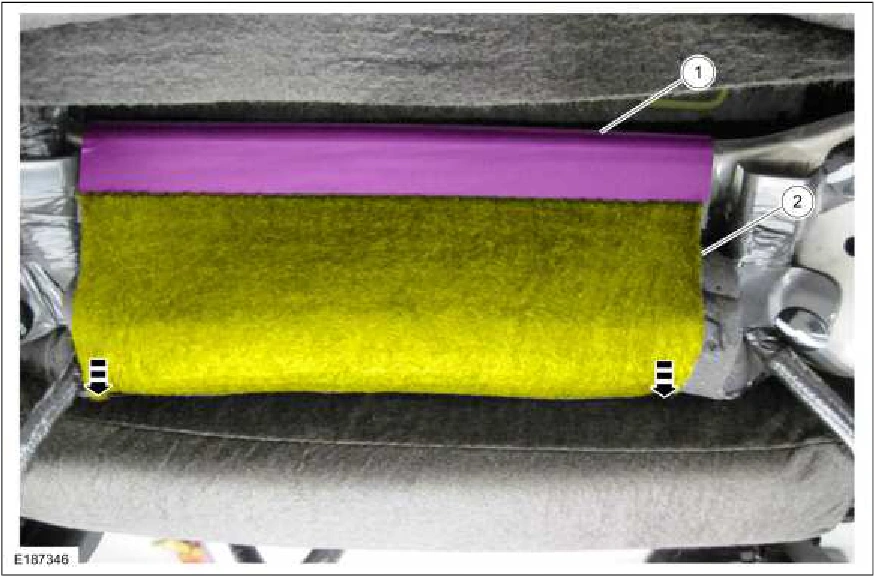

4. Position the front seat backrest cover.

1. Release the J-clip.

2. Position the backrest cover from between the seat cushion and backrest.

Side Airbag — original illustration 2, reference 2162Original colors & callouts · Select to enlarge

5. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or

the hook-and-loop strips may be torn from the seat backrest foam pad.

Partially invert the backrest cover to access the side airbag deployment chute.
