Engine Front Cover — 2016 workshop reference 218

Engine Front Cover — original illustration 1, reference 218Original colors & callouts · Select to enlarge

9. Install the ground wire and nut. Torque : 89 lb.in (10 Nm) Install the wiring harness retainers.

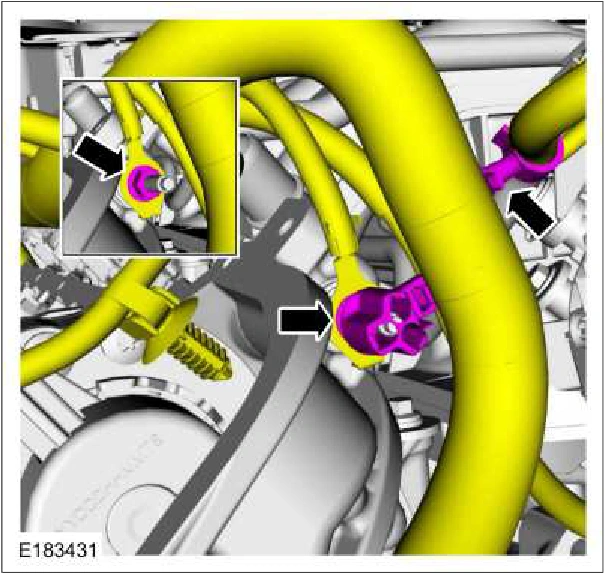

Engine Front Cover — original illustration 2, reference 218Original colors & callouts · Select to enlarge

10. Attach the wiring harness retainers to the engine front cover and stud bolt.
