Engine Front Cover — 2016 workshop reference 217

Engine Front Cover — original illustration 1, reference 217Original colors & callouts · Select to enlarge

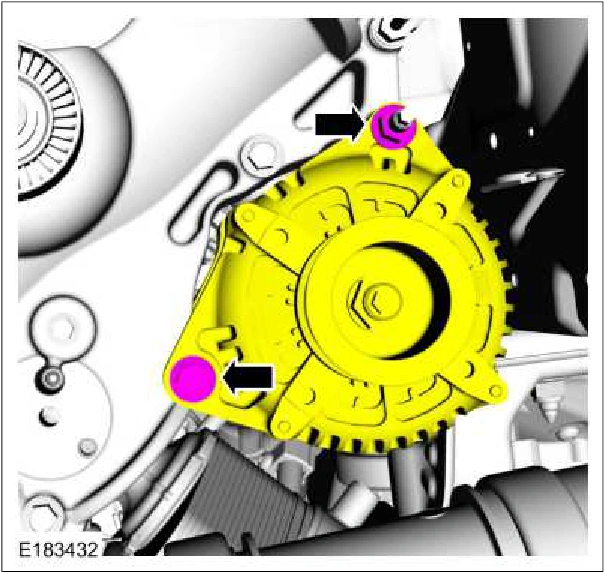

7. Install the generator, the bolt and the nut. Torque : 35 lb.ft (48 Nm)

Engine Front Cover — original illustration 2, reference 217Original colors & callouts · Select to enlarge

8. Install the accessory drive belt tensioner and bolt. Torque : 35 lb.ft (48 Nm)
