2016 workshop · Engine

Engine Front Cover

303-01C Engine - 5.0L

2016 Mustang5.0LReference 214 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine Front Cover — original illustration 1, reference 214Original colors & callouts · Select to enlarge

Installation

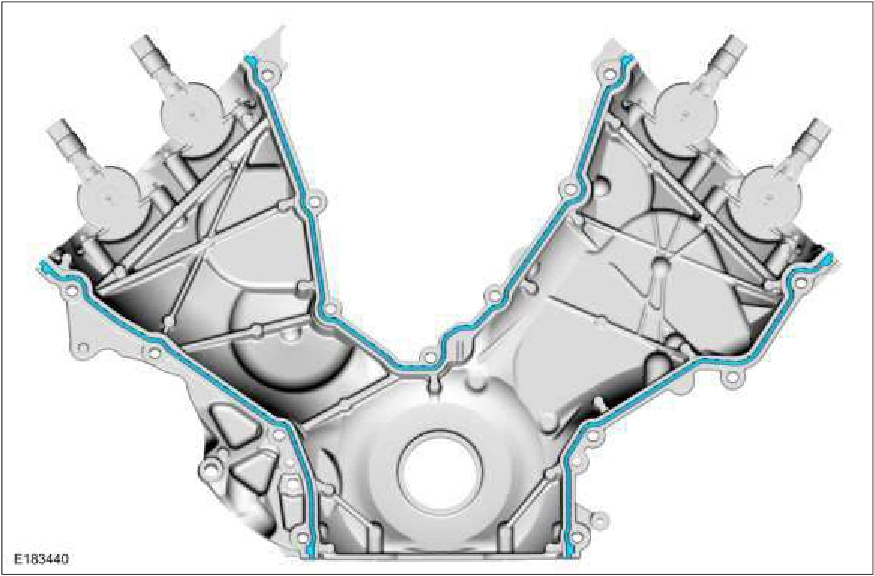

1. Install new gaskets on the engine front cover.

Engine Front Cover — original illustration 2, reference 214Original colors & callouts · Select to enlarge

2. NOTICE: The VCT variable force solenoid pins must be fully depressed to avoid interference with

the VCT valve tips when installing the engine front cover. Failure to follow these instructions can result in damage to the engine.

NOTE: RH shown, LH similar.

Fully depress the VCT variable force solenoid pins.

Source reference 214
