Engine Front Cover — 2016 workshop reference 212

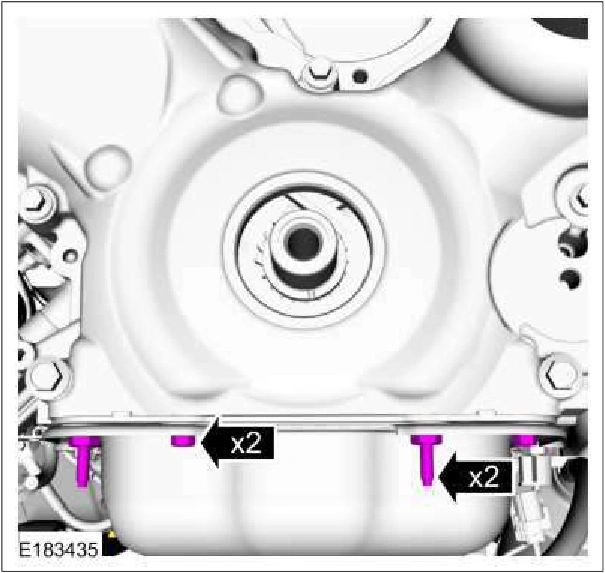

Engine Front Cover — original illustration 1, reference 212Original colors & callouts · Select to enlarge

24. Remove the bolts and stud bolts.

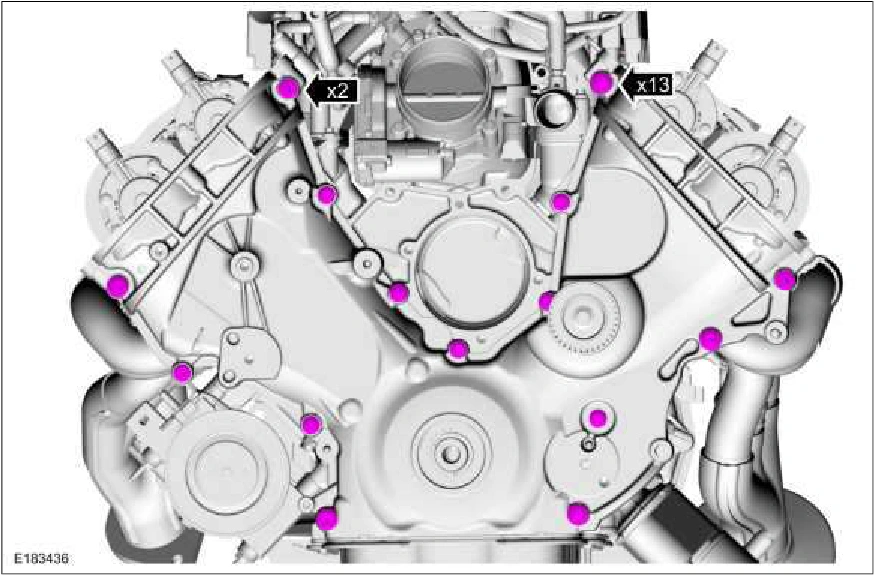

Engine Front Cover — original illustration 2, reference 212Original colors & callouts · Select to enlarge

25. NOTE: Timing drive components removed from view for clarity.

Remove the engine front cover from the front cover to cylinder block dowels.
