Engine Front Cover — 2016 workshop reference 211

Engine Front Cover — original illustration 1, reference 211Original colors & callouts · Select to enlarge

22. Remove the nut and the wiring harness retainer.

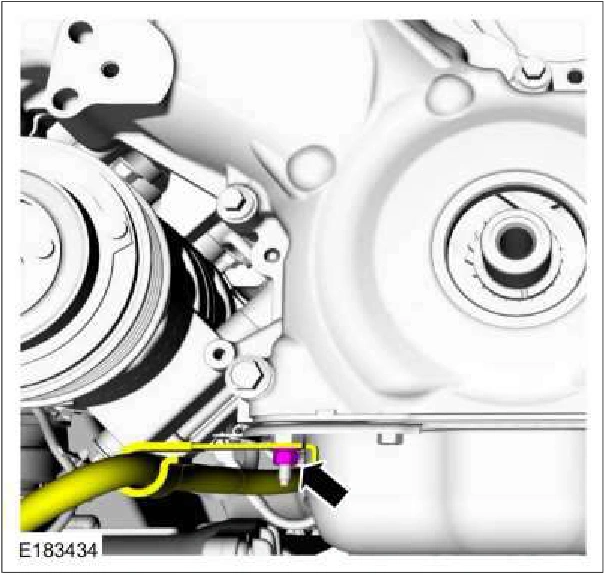

Engine Front Cover — original illustration 2, reference 211Original colors & callouts · Select to enlarge

23. Remove the bolts and stud bolts.
