Engine Front Cover — 2016 workshop reference 208

Engine Front Cover — original illustration 1, reference 208Original colors & callouts · Select to enlarge

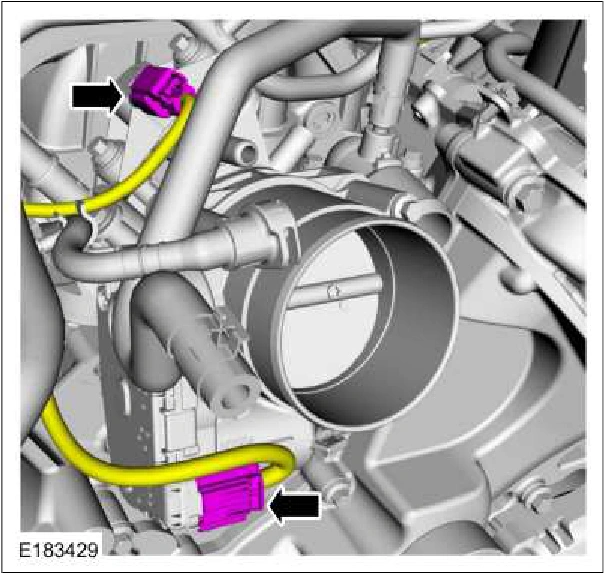

16. Disconnect the throttle body and EVAP purge valve electrical connectors.

Engine Front Cover — original illustration 2, reference 208Original colors & callouts · Select to enlarge

17. Detach the wiring harness retainers from the engine front cover and stud bolt.
