Engine Front Cover — 2016 workshop reference 207

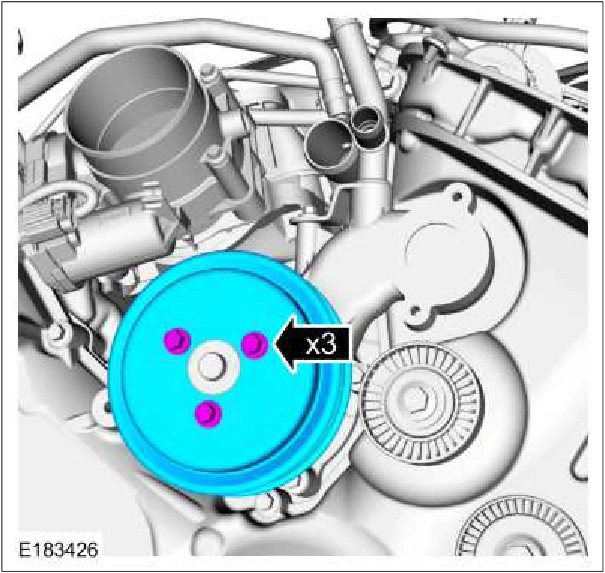

Engine Front Cover — original illustration 1, reference 207Original colors & callouts · Select to enlarge

14. Remove the bolts and the coolant pump.

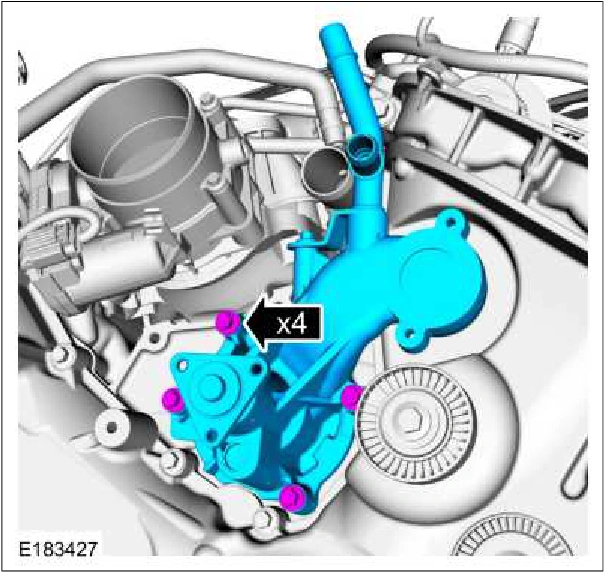

Engine Front Cover — original illustration 2, reference 207Original colors & callouts · Select to enlarge

15. Remove and discard the coolant pump O-ring seal.
