Engine Front Cover

303-01C Engine - 5.0L

2016 Mustang5.0LReference 204 / 6,619HTML edition
← Chapter contentsProcedure contents

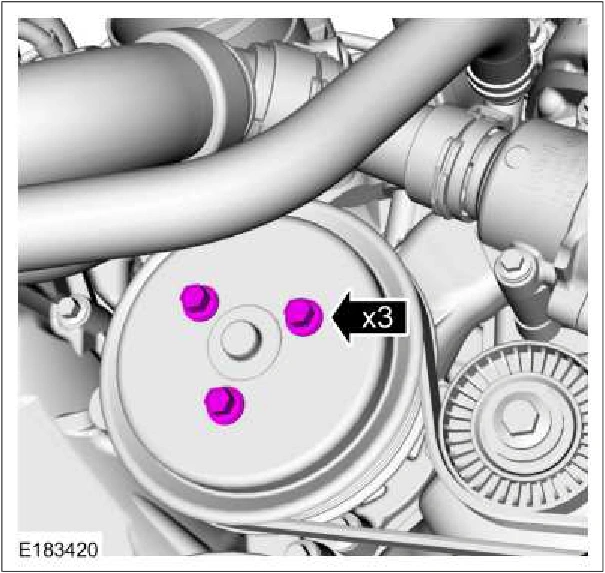

Engine Front Cover — original illustration 1, reference 204Original colors & callouts · Select to enlarge

7. Remove the following items:

1. Refer to: Crankshaft Front Seal (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Valve Cover RH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Refer to: Valve Cover LH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

8. Disconnect the lower radiator hose from the thermostat housing assembly.

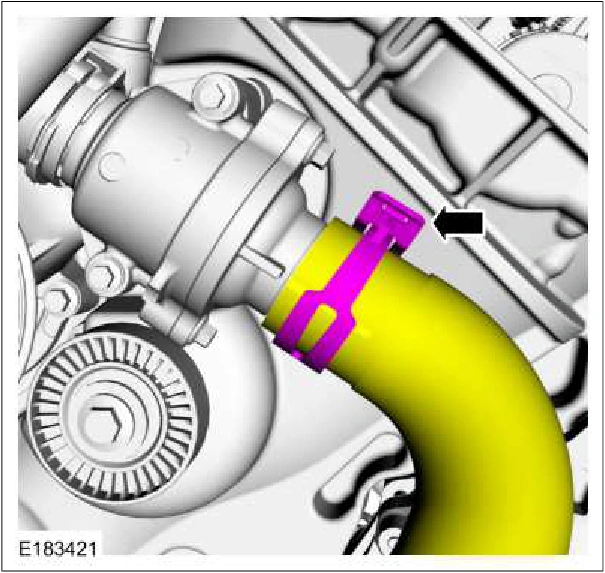

Engine Front Cover — original illustration 2, reference 204Original colors & callouts · Select to enlarge

9. Remove the thermostat housing bolts.
