Engine Front Cover — 2016 workshop reference 205

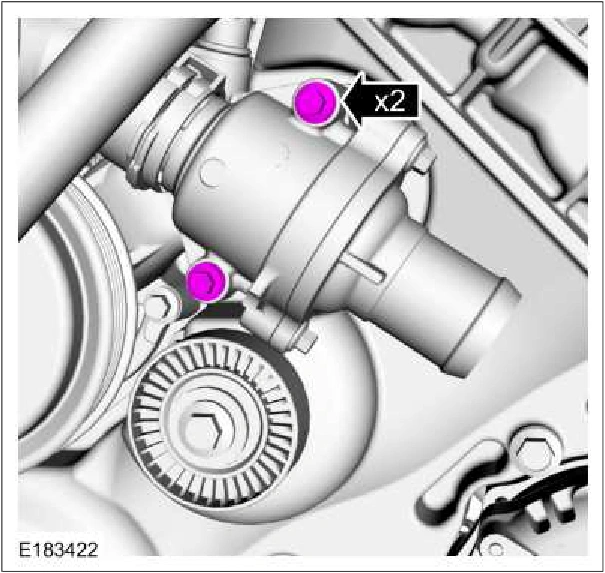

Engine Front Cover — original illustration 1, reference 205Original colors & callouts · Select to enlarge

10. Release the clamp and remove the upper radiator hose T-connector/thermostat housing assembly.

Release the clamp and remove the degas bottle coolant hose.

Engine Front Cover — original illustration 2, reference 205Original colors & callouts · Select to enlarge

11. Remove and discard the thermostat housing O-ring seal.
