Cylinder Head RH — 2016 workshop reference 201

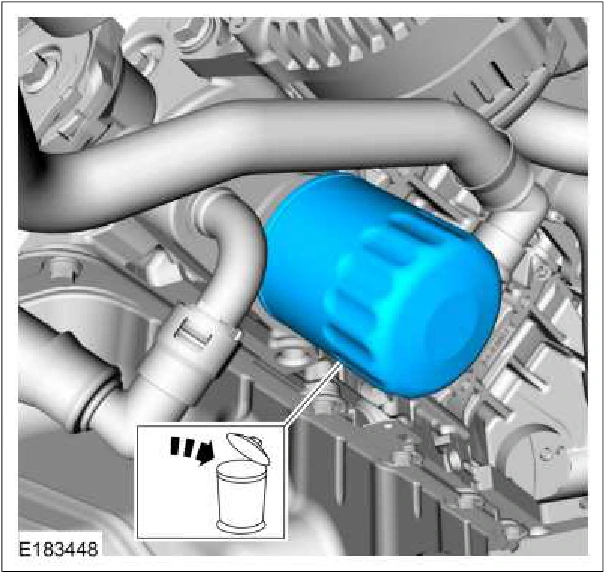

10. Remove and discard the engine oil filter.

Cylinder Head RH — original illustration 1, reference 201Original colors & callouts · Select to enlarge

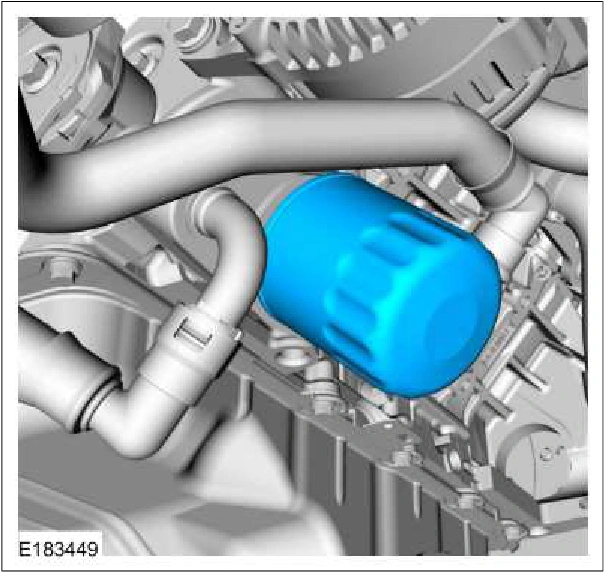

11. NOTE: Do not lubricate the O-ring seal.

Install a new oil filter. Torque : Stage 1: 44 lb.in (5 Nm) Stage 2: 180°

Cylinder Head RH — original illustration 2, reference 201Original colors & callouts · Select to enlarge

12. Fill the engine with clean engine oil. Refer to: Specifications (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Specifications). Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
