Cylinder Head RH — 2016 workshop reference 199

Cylinder Head RH — original illustration 1, reference 199Original colors & callouts · Select to enlarge

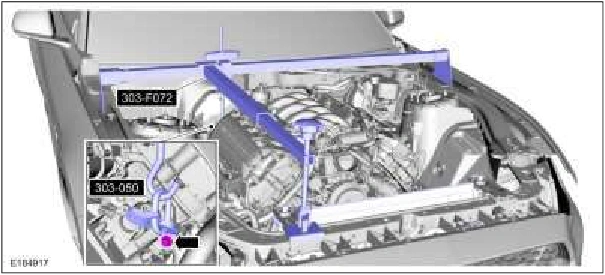

6. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine. , 303-F072 Support Bar, Engine. Using the special tools raise the RH side of the engine 25 mm (1 inch).

Cylinder Head RH — original illustration 2, reference 199Original colors & callouts · Select to enlarge

7. Remove the bolts, stud bolts and the RH engine mount bracket.
