Cylinder Head RH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 200 / 6,619HTML edition
← Chapter contentsProcedure contents
Cylinder Head RH — original illustration 1, reference 200Original colors & callouts · Select to enlarge

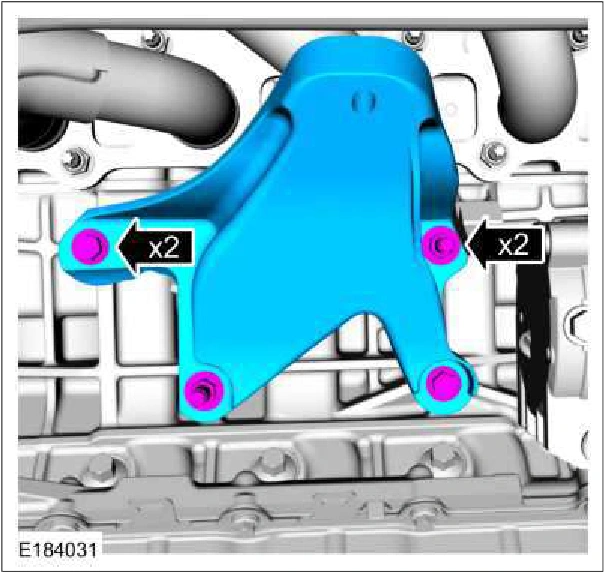

8. Install the following items:

1. Refer to: Exhaust Manifold RH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Camshaft RH (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

3. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

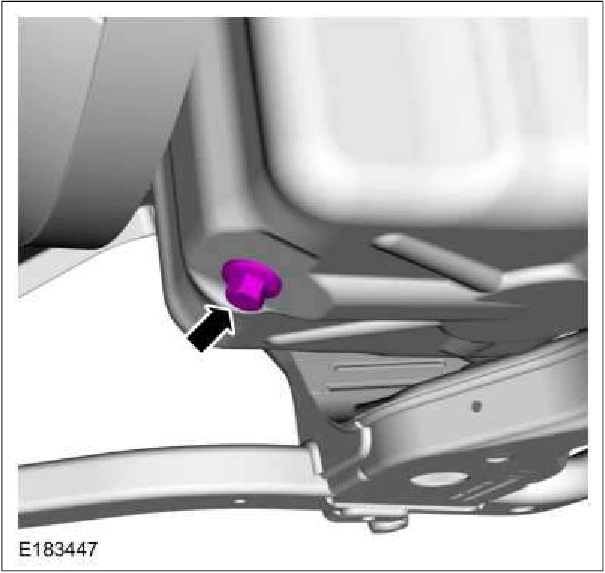

9. Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment Install the oil pan drain plug. Torque : 19 lb.ft (26 Nm)

Cylinder Head RH — original illustration 2, reference 200Original colors & callouts · Select to enlarge
Source reference 200
